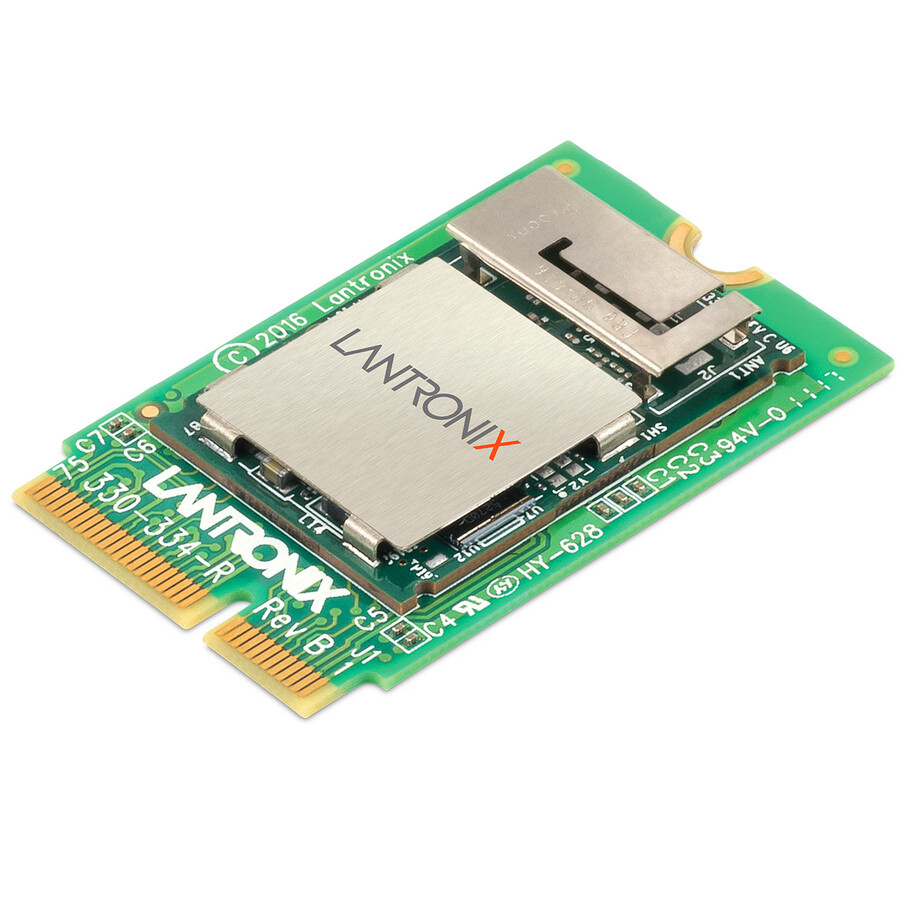

Lantronix xPico 240 edge connector embedded IoT gateway with on-module antenna

Lantronix XPC240400S-02 — xPico 240 Edge Connector Module Single

Name: Lantronix XPC240400S-02 — xPico 240 Edge Connector Module Single
Brand: Lantronix
SKU: XPC240400S-02
Price: 34.90 USD
Availability: BackOrder

Lantronix|

MPN: XPC240400S-02

UPC: 0783384238626

Available on Backorder

$34.90$36.57

Ships from and sold by A5 IT

Available on backorder — ships as soon as stock arrives

Request for QuoteCall 224-312-2244 for Sales

Free 2-3 Day Shipping — no minimumShips as soon as stock arrives. We'll confirm the lead time before your card is charged.

New, with full manufacturer warranty

Key Features

Dual-band Wi-Fi — IEEE 802.11 a/b/g up to 54 Mbps and 802.11 n (1×1) up to 150 Mbps
Ethernet support — IEEE 802.3 MAC, 10Base-T and 100Base-TX (RMII)
Concurrent Soft AP + STA — direct wireless service access without disrupting machine field operations
Percepxion™ management — remote updates and device management via Percepxion™
Security framework — Secure Boot, Secure Firmware-Over-the-Air (FOTA) Updates, Secure Key Storage and Encrypted Configuration
Operating temperature — -40°C to +85°C
Dual-band Wi-Fi (802.11 a/b/g/n) and Ethernet
Automatic network connection management

Lantronix XPC240400S-02 is an xPico 240 Embedded IoT Gateway with 802.11 a/b/g/n, Ethernet, an on-module antenna and an edge connector. It is designed for OEM smart connected products that need Ethernet and Wi-Fi connectivity in an embedded gateway. The xPico 240 series is integrated with Lantronix Percepxion™ cloud-based IoT edge solution for remote updates and device management. Listed management interfaces include REST, MQTT, Lantronix Discovery Protocol (77FE), Serial Port, Internal Web Server (HTTP/HTTPS), and XML Configuration and XML Status. Wireless features include Concurrent Soft AP + STA (Client), Client and Soft AP modes, WLAN QuickConnect, and Ethernet to Wi-Fi Client Bridge (Single Host Mode). Security capabilities include Secure Boot, Secure Firmware-Over-the-Air (FOTA) Updates, Secure Key Storage, Encrypted Configuration, SSL/TLS, HTTPS, role-based access control, WPA/WPA2 Personal and WPA2 Enterprise.

Ideal For

Adding Ethernet and Wi-Fi connectivity to OEM smart connected products
Operating as a network co-processor or wireless MCU in embedded applications
Providing direct wireless service access with Concurrent Soft AP + client mode
Managing remote updates and devices through Percepxion™

Specifications

Safety	IEC 62368 EN 62368, EN 62311, UL 60950
Series	XPico 240 Embedded IoT Gateway
Antenna	On-module antenna
Roaming	802.11r fast roaming
Ethernet	IEEE 802.3 MAC, 10Base-T and 100Base-TX (RMII)
Warranty	5-Year Limited
Connector	Edge connector
Packaging	Tray
Compliance	RoHS, REACH
Data Rates	9600 bps to 4 Mbps (software selectable)
Dimensions	22mm x 35.5mm x 2.73 mm (Edge Card)
System Pins	RESET, DEFAULT, WAKE
Standby Mode	30uA
Storage Temp	-40°C to +100°C
Channel Width	20 and 40 MHz channel width with optional SGI
Input Voltage	3.3VDC
Operating Temp	-40°C to +85°C
Type Approvals	USA (FCC Part 15), Canada (IC RSS), EU (RED), Japan (MIC), China (SRRC), AU/NZS
Wireless Modes	Concurrent Soft AP + STA (Client), Client, Soft AP
Concurrent Mode	Up to 4 in Concurrent Mode
Control Signals	DTR/DCD; Flow Control: RTS/CTS; XON/XOFF
Frequency Bands	Dual Band 2.4 GHz and 5 GHz, Channels 1-13, UNII-1, 2a, 2e and 3
Host Interfaces	USB (Host), 12 Programmable I/O Pins (GPIOs)
Serial Interface	UART Port TTL
Storage Humidity	5% to 85% relative humidity, non-condensing
Wireless Standards	IEEE 802.11 a/b/g up to 54 Mbps; 802.11 n (1×1) up to 150 Mbps
Non-operational Shock	65G
Vibration Operational	40G
Max Current Consumption	580 mA (xPico 240)

Documentation

Additional pdf1

Manufacturer Brochure

User Manual

Product Brief

xPico 240 Product Brief (A4)

Cert, IC, xPico 200

Cert, Bureau Veritas Certificate of Conformity, xPico 200

Environmental Certs RoHS and REACH_xPico®200

CERTIFICATION, XPICO 270, EU/CE DOC, CERTIFICATES CE

Cert, EU RED NBO certificate, xPico 240/xPico 250/xPico 270 CE

Frequently Asked Questions

Does XPC240400S-02 use an edge connector?▾

Yes. The Lantronix part row describes XPC240400S-02 as an xPico 240 Embedded IoT Gateway with an edge connector and on-module antenna.

Which Wi-Fi standards and bands does this module support?▾

It supports IEEE 802.11 a/b/g up to 54 Mbps and 802.11 n (1×1) up to 150 Mbps, with dual-band 2.4 GHz and 5 GHz operation.

What management interfaces are supported?▾

The listed management interfaces include Lantronix Percepxion™ Cloud Software Platform, REST, MQTT, Lantronix Discovery Protocol (77FE), Serial Port, Internal Web Server (HTTP/HTTPS), XML Configuration and XML Status, and secure firmware upgrade via HTTPS and Percepxion™.

What power specifications are listed?▾

The input voltage is 3.3VDC. Max current consumption at boot peak is listed as 580 mA for xPico 240, and standby mode is listed as 30uA.
