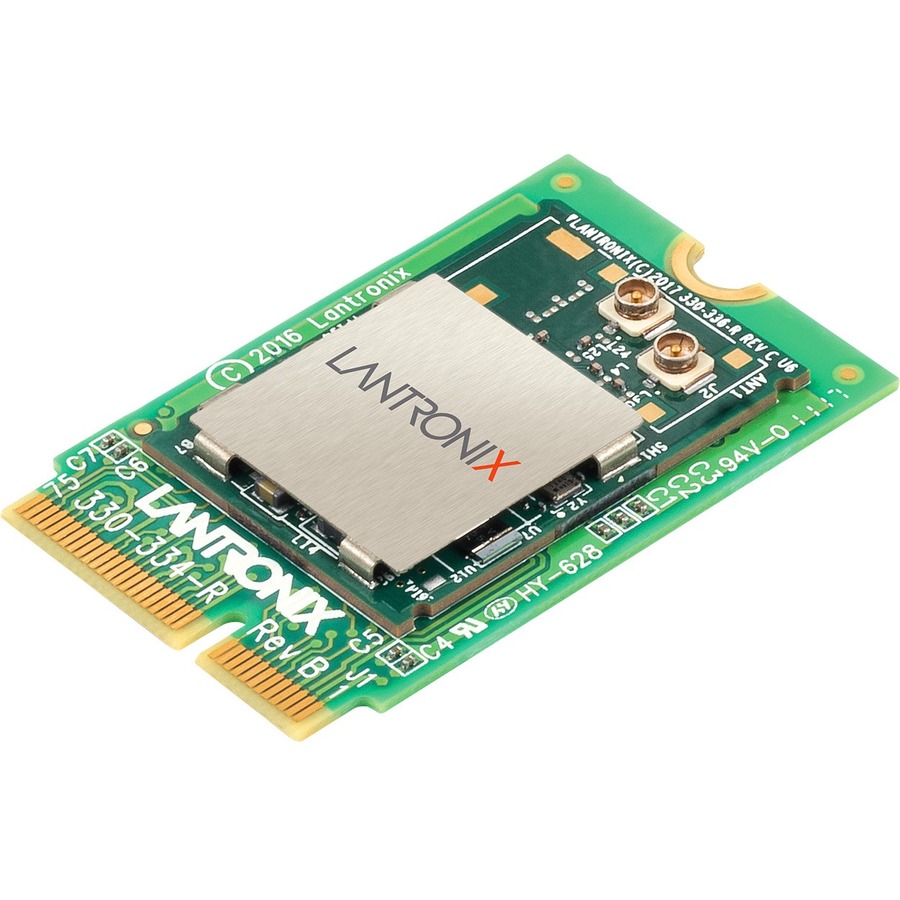

Lantronix XPC240300S-02 — xPico 240 Embedded IoT Gateway
$36.62
Ships from and sold by A5 IT
Available on backorder — ships as soon as stock arrives
Free 2-3 Day Shipping on US orders $50+Ordered on its own: $16.89 ground shipping. Add $50 or more to your cart and it ships free.Ships as soon as stock arrives. We'll confirm the lead time before your card is charged.
New, with full manufacturer warranty
Key Features
- Dual-band 802.11 a/b/g/n Wi-Fi and Ethernet connectivity
- Concurrent Soft AP + STA mode for direct wireless service access while maintaining client operation
- Ethernet to Wi-Fi Client Bridge in Single Host Mode with Auto-MAC ID
- Lantronix Percepxion™ Cloud Software Platform, REST and MQTT management interfaces
- Infinishield™ Security Software with Secure Boot and Secure Firmware-Over-the-Air updates
- UART Port TTL data rates from 9600 bps to 4 Mbps, software selectable
- Edge Connector configuration with dual U.FL, supplied as a single module
- Dual-band Wi-Fi (802.11 a/b/g/n) and Ethernet
Lantronix xPico 240 Embedded IoT Gateway gives OEM products Ethernet and dual-band 802.11 a/b/g/n Wi-Fi connectivity in an embedded module configuration. This SKU is the xPico 240 edge connector version with dual U.FL and industrial temperature noted in the Lantronix part description. The module supports concurrent Soft AP + STA operation, Ethernet to Wi-Fi Client Bridge in Single Host Mode and WLAN QuickConnect. It can operate as a network co-processor or wireless MCU. Security and management are built in. xPico 240 includes Infinishield™ Security Software, Secure Boot, Secure Firmware-Over-the-Air updates, role based access control, Percepxion™ cloud software platform support, REST, MQTT and an internal web server.
Ideal For
- Adding Ethernet and dual-band Wi-Fi connectivity to OEM smart connected products
- Using concurrent Soft AP + STA mode for direct wireless service access without disrupting machine field operations
- Operating as a network co-processor for an embedded microcontroller
- Managing deployed xPico 240 devices through Percepxion™ and secure firmware updates
Specifications
| Safety | IEC 62368 EN 62368, EN 62311, UL 60950 |
| Series | XPico 240 Embedded IoT Gateway |
| Ethernet | IEEE 802.3 MAC, 10Base-T and 100Base-TX (RMII)” |
| Warranty | 5-Year Limited |
| Data Rates | 9600 bps to 4 Mbps (software selectable) |
| Dimensions | 17mm x 25mm x 2mm (LGA); 22mm x 35.5mm x 2.73 mm (Edge Card) |
| Bridge Mode | Ethernet to Wi-Fi Client Bridge (Single Host Mode), Auto-MAC ID |
| System Pins | RESET, DEFAULT, WAKE |
| Fast Roaming | 802.11r fast roaming |
| Standby Mode | 30uA |
| Storage Temp | -40°C to +100°C |
| Channel Width | 20 and 40 MHz channel width with optional SGI |
| Configuration | XPICO 240 EMBEDDED IOT GW, 802.11 A/B/G/N, ETH, DUAL U.FL, IND TEMP, EDGE CONN, SINGLE |
| Input Voltage | 3.3VDC |
| Lga Packaging | Tape and Reel, MSL 3 |
| Operating Temp | -40°C to +85°C |
| Type Approvals | USA (FCC Part 15), Canada (IC RSS), EU (RED), Japan (MIC), China (SRRC), AU/NZS |
| Wireless Modes | Concurrent Soft AP + STA (Client), Client, Soft AP |
| Concurrent Mode | Up to 4 in Concurrent Mode |
| Control Signals | DTR/DCD; Flow Control: RTS/CTS; XON/XOFF |
| Frequency Bands | Dual Band 2.4 GHz and 5 GHz, Channels 1-13, UNII-1, 2a, 2e and 3 |
| Host Interfaces | USB (Host), 12 Programmable I/O Pins (GPIOs) |
| Storage Humidity | 5% to 85% relative humidity, non-condensing |
| Wireless Features | Connect to multiple WLAN networks, WLAN QuickConnect |
| Wireless Standard | IEEE 802.11 a/b/g up to 54 Mbps; 802.11 n (1×1) up to 150 Mbps |
| Non-operational Shock | 65G |
| Vibration Operational | 40G |
| Edge Connector Packaging | Tray |
| Environmental Compliance | RoHS, REACH |
| Max Current Consumption Boot Peak | 580 mA (xPico 240) |
Documentation
Frequently Asked Questions
Does this xPico 240 support dual-band Wi-Fi?▾
Yes. The xPico 240 supports IEEE 802.11 a/b/g up to 54 Mbps and 802.11 n (1×1) up to 150 Mbps, with dual band 2.4 GHz and 5 GHz operation.
Does this module include Ethernet connectivity?▾
Yes. The xPico 240 line includes Ethernet, and the Ethernet specification is IEEE 802.3 MAC, 10Base-T and 100Base-TX (RMII).
How can the module be managed?▾
Management interfaces include Lantronix Percepxion™ Cloud Software Platform, REST, MQTT, Lantronix Discovery Protocol, serial port, an internal web server and XML configuration and status.
What physical configuration is this SKU?▾
The Lantronix part row describes XPC240300S-02 as an edge connector configuration with dual U.FL.
