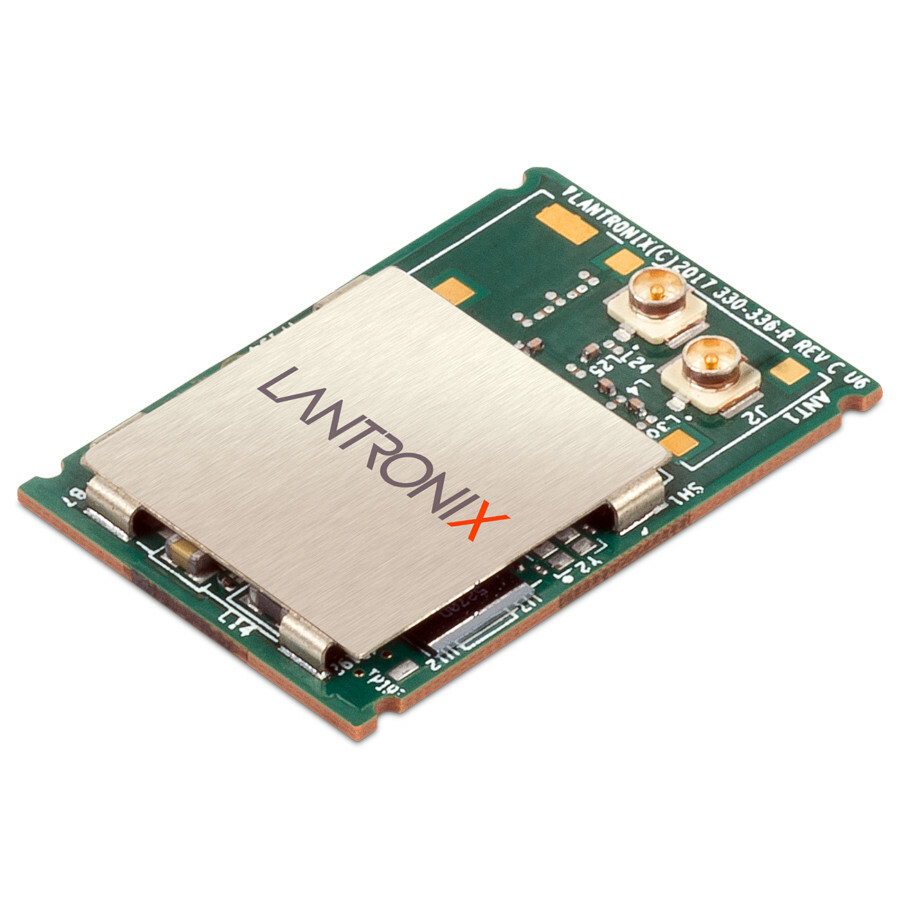

Lantronix XPC240100S-02 — xPico 240 LGA Embedded IoT Gateway
$32.86$34.42
Ships from and sold by A5 IT
Available on backorder — ships as soon as stock arrives
Free 2-3 Day Shipping — no minimumShips as soon as stock arrives. We'll confirm the lead time before your card is charged.
New, with full manufacturer warranty
Key Features
- Dual-band 802.11 a/b/g/n Wi-Fi and Ethernet connectivity
- 802.11 n (1×1) up to 150 Mbps wireless data rate
- Concurrent Soft AP + STA (Client), Client, and Soft AP wireless modes
- Lantronix Percepxion™ Cloud Software Platform, REST, and MQTT management interfaces
- Infinishield™ Security Software with Secure Boot and Secure Firmware-Over-the-Air updates
- LGA package supplied as Tape and Reel, MSL 3
- 3.3VDC input voltage with 30uA standby mode
- Dual-band Wi-Fi (802.11 a/b/g/n) and Ethernet
Lantronix xPico 240 XPC240100S-02 is an embedded IoT gateway module for adding Ethernet and Wi-Fi connectivity to OEM smart connected products. This SKU is the LGA tape-and-reel configuration with 802.11 a/b/g/n, Ethernet, dual U.FL, and industrial temperature operation. The xPico 240 supports dual-band 2.4 GHz and 5 GHz Wi-Fi, 20 and 40 MHz channel width with optional SGI, 802.11r fast roaming, and Ethernet to Wi-Fi Client Bridge in Single Host Mode. It can operate as a network co-processor or wireless MCU. Management interfaces include Lantronix Percepxion™ Cloud Software Platform, REST, MQTT, Lantronix Discovery Protocol, serial port, an internal web server, XML configuration, and XML status. Security features include Secure Boot, Secure Firmware-Over-the-Air updates, secure key storage, encrypted configuration, SSL/TLS, HTTPS, role based access control, WPA/WPA2 Personal, and WPA2 Enterprise.
Ideal For
- Adding Ethernet and Wi-Fi connectivity to OEM smart connected products
- Using the xPico 240 as a network co-processor for embedded microcontroller designs
- Using the xPico 240 as a wireless MCU with the provided SDK
- Creating an Ethernet to Wi-Fi Client Bridge in Single Host Mode
Specifications
| Channels | Channels 1-13, UNII-1, 2a, 2e and 3 |
| Bridge Mode | Ethernet to Wi-Fi Client Bridge (Single Host Mode), Auto-MAC ID |
| Form Factor | LGA |
| Fast Roaming | 802.11r fast roaming |
| Standby Mode | 30uA |
| Storage Temp | -40°C to +100°C |
| AES Algorithm | 256-bit, 192-bit, 128-bit |
| Channel Width | 20 and 40 MHz channel width with optional SGI |
| Input Voltage | 3.3VDC |
| Operating Temp | -40°C to +85°C |
| Web Management | Internal Web Server (HTTP/HTTPS) |
| Wi-Fi Security | AES/CCMP and TKIP encryption, WPA/WPA2 Personal; WPA2 Enterprise (EAP-TLS, EAP-TTLS, EAP-PEAP, EAP-FAST) |
| Wireless Bands | Dual Band 2.4 GHz and 5 GHz |
| Wireless Modes | Concurrent Soft AP + STA (Client), Client, Soft AP |
| Concurrent Mode | Up to 4 in Concurrent Mode |
| Firmware Upgrade | Secure Firmware Upgrade via HTTPS, Percepxion™ |
| Protocol Support | DHCP Client, Server (Soft AP), HTTP Server/Client; IPv4, TCP/IP, UDP/IP, ARP, ICMP, Auto-IP, DNS; SNMP v1/v2; IPv6 |
| Firmware Security | Secure Boot, Secure Firmware-Over-the-Air (FOTA) Updates |
| Security Software | Infinishield™ Security Software |
| Discovery Protocol | Lantronix Discovery Protocol (77FE) |
| Wireless Standards | IEEE 802.11 a/b/g/n |
| Certificate Support | SSLv3/TLS 1.2 with PKI and X.509 Certificates (up to 4096-bit Keys) |
| Antenna Configuration | Dual U.FL |
| Management Interfaces | Lantronix Percepxion™ Cloud Software Platform, REST, MQTT |
| Non-operational Shock | 65G |
| Vibration Operational | 40G |
| IEEE 80211 N Data Rate | 802.11 n (1×1) up to 150 Mbps |
| Ethernet Specifications | IEEE 802.3 MAC, 10Base-T and 100Base-TX (RMII) |
| IEEE 80211 A B G Data Rate | Up to 54 Mbps |
| Max Current Consumption Boot Peak | 580 mA (xPico 240) |
Documentation
Frequently Asked Questions
What Wi-Fi standards does this xPico 240 module support?▾
XPC240100S-02 supports IEEE 802.11 a/b/g up to 54 Mbps and 802.11 n (1×1) up to 150 Mbps on dual-band 2.4 GHz and 5 GHz Wi-Fi.
Does this SKU include Ethernet support?▾
Yes. The input lists Ethernet specifications as IEEE 802.3 MAC, 10Base-T and 100Base-TX (RMII).
How is the xPico 240 managed?▾
Management interfaces include Lantronix Percepxion™ Cloud Software Platform, REST, MQTT, Lantronix Discovery Protocol (77FE), serial port, internal web server (HTTP/HTTPS), XML configuration and XML status, and secure firmware upgrade via HTTPS and Percepxion™.
What package and delivery format is XPC240100S-02?▾
This SKU is an LGA version supplied as Tape and Reel, MSL 3.
