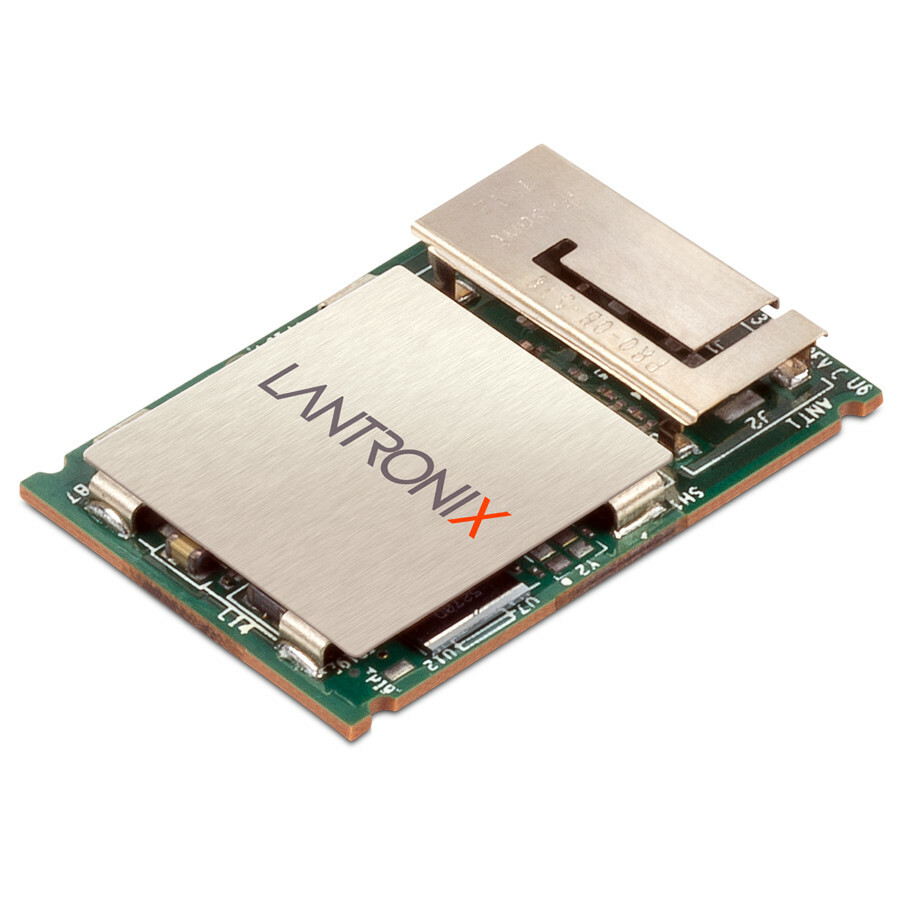

Lantronix xPico 240 embedded IoT gateway module with on-module antenna

Lantronix XPC240200S-02 — xPico 240 Embedded IoT Gateway

Name: Lantronix XPC240200S-02 — xPico 240 Embedded IoT Gateway
Brand: Lantronix
SKU: XPC240200S-02
Price: 34.37 USD
Availability: BackOrder

Lantronix|

MPN: XPC240200S-02

UPC: 0783384238589

Available on Backorder

$34.37

Ships from and sold by A5 IT

Available on backorder — ships as soon as stock arrives

Request for QuoteCall 224-312-2244 for Sales

Free 2-3 Day Shipping on US orders $50+Ordered on its own: $16.89 ground shipping. Add $50 or more to your cart and it ships free.Ships as soon as stock arrives. We'll confirm the lead time before your card is charged.

New, with full manufacturer warranty

Key Features

Dual-band 802.11 a/b/g/n Wi-Fi and Ethernet connectivity
Concurrent Soft AP + STA mode with up to 4 in Concurrent Mode
3.3VDC input voltage with 30uA standby mode
LGA tape-and-reel packaging with MSL 3
Lantronix Percepxion™ management with REST, MQTT and secure firmware upgrade
Secure Boot, Secure Firmware-Over-the-Air (FOTA) Updates and secure key storage
Dual-band Wi-Fi (802.11 a/b/g/n) and Ethernet
Automatic network connection management

Lantronix xPico 240 is an embedded IoT gateway line for OEM smart connected products that need Ethernet and Wi-Fi connectivity with production-ready software and Percepxion™ integration. XPC240200S-02 is the xPico 240 SKU specified with 802.11 a/b/g/n, Ethernet, an on-module antenna, industrial temperature, and LGA tape-and-reel packaging. The module supports dual-band 2.4 GHz and 5 GHz Wi-Fi, Concurrent Soft AP + STA operation, Ethernet to Wi-Fi Client Bridge in Single Host Mode, and WLAN QuickConnect. Host integration includes UART Port TTL data rates from 9600 bps to 4 Mbps, USB Host, 12 Programmable I/O Pins, and RESET, DEFAULT, and WAKE system pins. Security and management are built in, including Infinishield™ Security Software, Secure Boot, Secure Firmware-Over-the-Air updates, secure key storage, role based access control, Percepxion™, REST, MQTT, HTTP/HTTPS, and XML configuration and status.

Ideal For

Adding dual-band Wi-Fi and Ethernet connectivity to OEM smart connected products
Using xPico 240 as a network co-processor or wireless MCU
Providing direct wireless service access with Concurrent Soft AP + client mode
Managing remote updates and device maintenance through Percepxion™

Specifications

Antenna	On-module antenna
Ethernet	IEEE 802.3 MAC, 10Base-T and 100Base-TX (RMII)
Security	Secure Boot, Secure Firmware-Over-the-Air (FOTA) Updates; Secure Key Storage, Encrypted Configuration; Secure Connections with SSL/TLS, HTTPS; Role Based Access Control
Packaging	Tape and Reel, MSL 3
Data Rates	9600 bps to 4 Mbps (software selectable)
Dimensions	17mm x 25mm x 2mm (LGA)
Encryption	AES/CCMP and TKIP encryption, WPA/WPA2 Personal
Form Factor	LGA
System Pins	RESET, DEFAULT, WAKE
Certificates	SSLv3/TLS 1.2 with PKI and X.509 Certificates (up to 4096-bit Keys)
Fast Roaming	802.11r fast roaming
Flow Control	RTS/CTS; XON/XOFF
Standby Mode	30uA
AES Algorithm	256-bit, 192-bit, 128-bit
Channel Width	20 and 40 MHz channel width with optional SGI
Input Voltage	3.3VDC
Host Interface	USB (Host)
Wi-Fi Standard	IEEE 802.11 a/b/g up to 54 Mbps; 802.11 n (1×1) up to 150 Mbps
Control Signals	DTR/DCD
Frequency Bands	Dual Band 2.4 GHz and 5 GHz, Channels 1-13, UNII-1, 2a, 2e and 3
Firmware Upgrade	Secure Firmware Upgrade via HTTPS, Percepxion™
Protocol Support	DHCP Client, Server (Soft AP), HTTP Server/Client; IPv4, TCP/IP, UDP/IP, ARP, ICMP, Auto-IP, DNS; SNMP v1/v2; IPv6
Enterprise Security	WPA2 Enterprise (EAP-TLS, EAP-TTLS, EAP-PEAP, EAP-FAST)
Storage Temperature	-40°C to +100°C
Management Interface	Lantronix Discovery Protocol (77FE); Serial Port, Internal Web Server (HTTP/HTTPS); XML Configuration and XML Status (CLI, API)
Host Serial Interface	UART Port TTL
Management Interfaces	Lantronix Percepxion™ Cloud Software Platform, REST, MQTT
Operating Temperature	-40°C to +85°C
Programmable I O Pins	12 Programmable I/O Pins (GPIOs)
Max Current Consumption Boot Peak	580 mA (xPico 240)

Documentation

Additional pdf1

Manufacturer Brochure

Product Brief

xPico 240 Product Brief (A4)

Cert, IC, xPico 200

Cert, Bureau Veritas Certificate of Conformity, xPico 200

Environmental Certs RoHS and REACH_xPico®200

CERTIFICATION, XPICO 270, EU/CE DOC, CERTIFICATES CE

Cert, EU RED NBO certificate, xPico 240/xPico 250/xPico 270 CE

Frequently Asked Questions

What Wi-Fi standards does XPC240200S-02 support?▾

It supports IEEE 802.11 a/b/g up to 54 Mbps and 802.11 n (1×1) up to 150 Mbps, with dual-band 2.4 GHz and 5 GHz operation.

Is this SKU an evaluation kit?▾

No. XPC240200S-02 is listed as an xPico 240 embedded IoT gateway with 802.11 a/b/g/n, Ethernet, on-module antenna, industrial temperature, and LGA tape-and-reel packaging. XPC240300EK is the related evaluation kit listed in the input.

What power does the module require?▾

The input voltage is 3.3VDC. Max current consumption at boot peak is listed as 580 mA for xPico 240, and standby mode is listed as 30uA.

How can the xPico 240 be managed?▾

Management interfaces include Lantronix Percepxion™ Cloud Software Platform, REST, MQTT, Lantronix Discovery Protocol, serial port, internal web server over HTTP/HTTPS, XML configuration and XML status, and secure firmware upgrade via HTTPS or Percepxion™.
