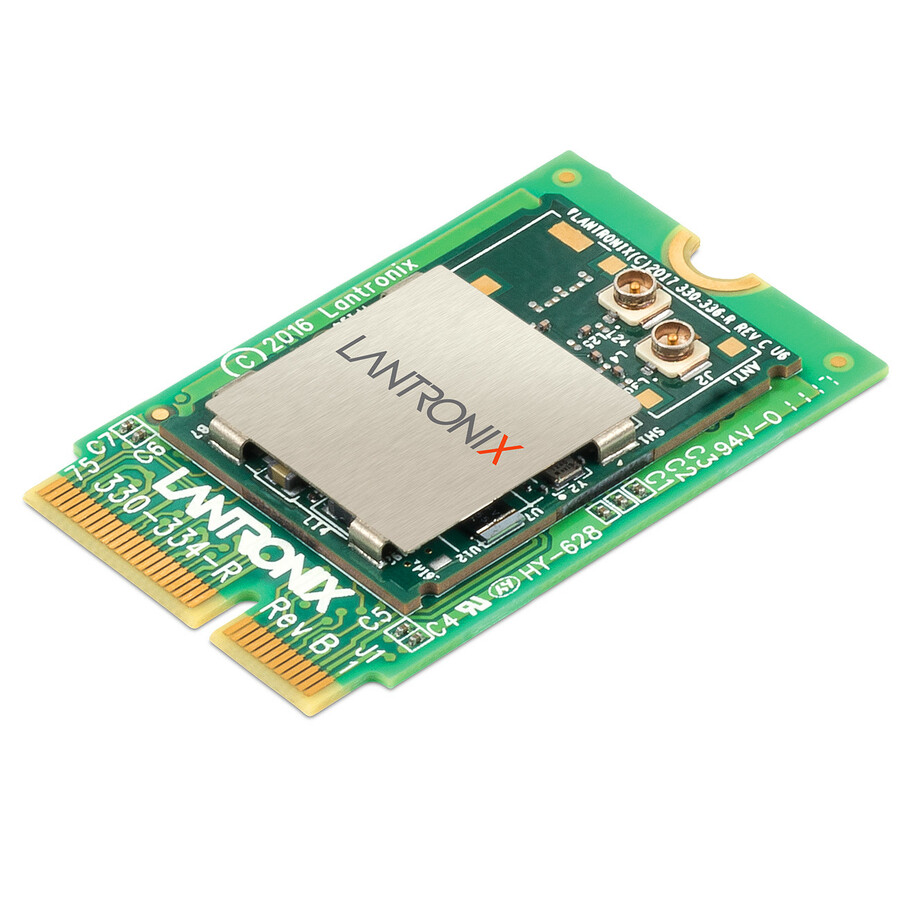

Lantronix XPC240300B-02 — xPico 240 Embedded IoT Gateway
$31.77$33.29
Ships from and sold by A5 IT
Available on backorder — ships as soon as stock arrives
Free 2-3 Day Shipping — no minimumShips as soon as stock arrives. We'll confirm the lead time before your card is charged.
New, with full manufacturer warranty
Key Features
- Dual-band Wi-Fi and Ethernet: IEEE 802.11 a/b/g/n plus IEEE 802.3 MAC, 10Base-T and 100Base-TX (RMII)
- Concurrent Soft AP + STA mode: client, Soft AP and concurrent operation with up to 4 in Concurrent Mode
- Percepxion management: Lantronix Percepxion™ Cloud Software Platform, REST, MQTT and secure firmware upgrade via HTTPS
- Infinishield™ security: Secure Boot, Secure Firmware-Over-the-Air updates, secure key storage and encrypted configuration
- Host integration: UART Port TTL data rates from 9600 bps to 4 Mbps, USB (Host) and 12 Programmable I/O Pins
- Industrial operating range: -40°C to +85°C operating temperature
- Edge Connector tray configuration: dual U.FL, industrial temperature, Edge Connector and Tray packaging
- Dual-band Wi-Fi (802.11 a/b/g/n) and Ethernet
Lantronix xPico 240 Embedded IoT Gateway delivers Ethernet and dual-band Wi-Fi connectivity for OEM smart connected products. The xPico 240 series is integrated with the Lantronix Percepxion™ cloud-based IoT edge solution. The module supports IEEE 802.11 a/b/g up to 54 Mbps and 802.11 n (1×1) up to 150 Mbps, with 2.4 GHz and 5 GHz bands. It also supports Concurrent Soft AP + STA operation, WLAN QuickConnect and Ethernet to Wi-Fi Client Bridge in Single Host Mode. Built-in Infinishield™ security includes Secure Boot, Secure Firmware-Over-the-Air updates, secure key storage, encrypted configuration, role based access control, SSL/TLS and HTTPS. Management options include Percepxion™, REST, MQTT, Lantronix Discovery Protocol, serial port, internal web server and XML configuration. XPC240300B-02 is the xPico 240 Edge Connector, Tray configuration with dual U.FL and industrial temperature listed in the Lantronix part row.
Ideal For
- Adding Ethernet and dual-band Wi-Fi connectivity to OEM smart connected products
- Using the xPico 240 as a network co-processor for embedded microcontroller designs
- Providing Concurrent Soft AP + client mode for direct wireless service access without disrupting machine field operations
- Managing remote updates and device maintenance through Lantronix Percepxion™
Specifications
| Series | XPico 240 Embedded IoT Gateway |
| Packaging | Tray |
| System Pins | RESET, DEFAULT, WAKE |
| Fast Roaming | 802.11r fast roaming |
| Standby Mode | 30uA |
| Storage Temp | -40°C to +100°C |
| Channel Width | 20 and 40 MHz channel width with optional SGI |
| Client Bridge | Ethernet to Wi-Fi Client Bridge (Single Host Mode), Auto-MAC ID |
| Input Voltage | 3.3VDC |
| Lga Dimensions | 17mm x 25mm x 2mm |
| Operating Temp | -40°C to +85°C |
| Web Management | Serial Port, Internal Web Server (HTTP/HTTPS) |
| Wireless Bands | Dual Band 2.4 GHz and 5 GHz |
| Concurrent Mode | Up to 4 in Concurrent Mode |
| Control Signals | DTR/DCD; Flow Control: RTS/CTS; XON/XOFF |
| Host Interfaces | USB (Host), 12 Programmable I/O Pins (GPIOs) |
| Storage Humidity | 5% to 85% relative humidity, non-condensing |
| Serial Data Rates | 9600 bps to 4 Mbps (software selectable) |
| Wireless Channels | Channels 1-13, UNII-1, 2a, 2e and 3 |
| Wireless Features | Concurrent Soft AP + STA (Client), Client, Soft AP |
| Discovery Protocol | Lantronix Discovery Protocol (77FE) |
| Wireless Standards | IEEE 802.11 a/b/g/n |
| Edge Card Dimensions | 22mm x 35.5mm x 2.73 mm |
| Management Interfaces | Lantronix Percepxion™ Cloud Software Platform, REST, MQTT |
| Non-operational Shock | 65G |
| Vibration Operational | 40G |
| IEEE 80211 N Data Rate | 802.11 n (1×1) up to 150 Mbps |
| Ethernet Specifications | IEEE 802.3 MAC, 10Base-T and 100Base-TX (RMII)” |
| IEEE 80211 A B G Data Rate | Up to 54 Mbps |
| Max Current Consumption Boot Peak | 580 mA (xPico 240) |
Documentation
Frequently Asked Questions
What Wi-Fi standards does XPC240300B-02 support?▾
It supports IEEE 802.11 a/b/g up to 54 Mbps and 802.11 n (1×1) up to 150 Mbps, with dual-band 2.4 GHz and 5 GHz operation.
Does the xPico 240 support Percepxion management?▾
Yes. Lantronix lists Lantronix Percepxion™ Cloud Software Platform, REST and MQTT under management interfaces, with secure firmware upgrade via HTTPS and Percepxion™.
What package configuration is this SKU?▾
This SKU is the Edge Connector version supplied in tray packaging, with dual U.FL listed in the Lantronix part description.
What power does the module require?▾
The input voltage is 3.3VDC. Max current consumption at boot peak is listed as 580 mA (xPico 240), and standby mode is listed as 30uA.
