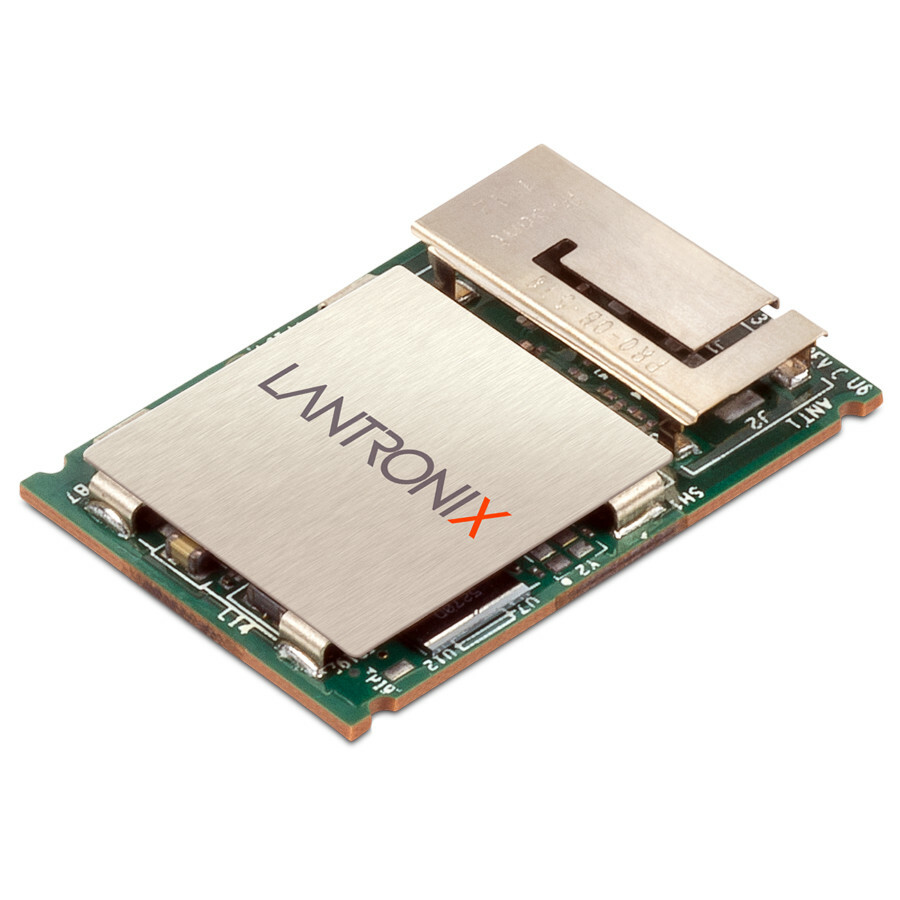

Lantronix XPC240200B-02 — xPico 240 Embedded IoT Gateway
$29.82$31.24
Ships from and sold by A5 IT
Available on backorder — ships as soon as stock arrives
Free 2-3 Day Shipping — no minimumShips as soon as stock arrives. We'll confirm the lead time before your card is charged.
New, with full manufacturer warranty
Key Features
- Dual-band 802.11 a/b/g/n Wi-Fi and Ethernet connectivity
- Concurrent Soft AP + client mode for direct wireless service access without disrupting machine field operations
- Network co-processor or wireless MCU operation with the provided SDK
- Lantronix Percepxion™ remote updates and device management
- Infinishield™ Security Software with secure boot, Secure Firmware-Over-the-Air (FOTA) updates and secure key storage
- Industrial-grade operation from -40 C to +85 C
- LGA tape-and-reel configuration with on-module antenna
- Dual-band Wi-Fi (802.11 a/b/g/n) and Ethernet
Lantronix xPico 240 Embedded IoT Gateway delivers Ethernet and Wi-Fi connectivity for OEM smart connected products. XPC240200B-02 is the 802.11 A/B/G/N, Ethernet, on-module antenna, industrial-temperature LGA tape-and-reel configuration. The series combines dual-band 2.4 GHz and 5 GHz Wi-Fi, automatic network connection management, and Concurrent Soft AP + client mode. It can operate as a network co-processor or as a wireless MCU with the provided SDK. Infinishield™ Security Software supports secure boot, Secure Firmware-Over-the-Air (FOTA) updates, secure key storage, encrypted configuration, SSL/TLS and HTTPS connections, and role based access control. Lantronix Percepxion™ provides remote updates and cloud-based device management for xPico 240 embedded IoT gateways.
Ideal For
- Adding dual-band Wi-Fi and Ethernet connectivity to OEM smart connected products
- Using Concurrent Soft AP + client mode for direct wireless service access during machine field operations
- Offloading network and IoT communications from an embedded microcontroller as a network co-processor
- Managing deployed xPico 240 gateways with Lantronix Percepxion™
Specifications
| Safety | IEC 62368 EN 62368, EN 62311, UL 60950 |
| Ethernet | IEEE 802.3 MAC, 10Base-T and 100Base-TX (RMII) |
| Warranty | 5-Year Limited |
| Compliance | RoHS, REACH |
| System Pins | RESET, DEFAULT, WAKE |
| Fast Roaming | 802.11r fast roaming |
| Standby Mode | 30uA |
| Storage Temp | -40°C to +100°C |
| Channel Width | 20 and 40 MHz channel width with optional SGI |
| Input Voltage | 3.3VDC |
| Lga Packaging | Tape and Reel, MSL 3 |
| Lga Dimensions | 17mm x 25mm x 2mm (LGA) |
| Operating Temp | -40°C to +85°C |
| Type Approvals | USA (FCC Part 15), Canada (IC RSS), EU (RED), Japan (MIC), China (SRRC), AU/NZS |
| Wireless Modes | Concurrent Soft AP + STA (Client), Client, Soft AP |
| Concurrent Mode | Up to 4 in Concurrent Mode |
| Frequency Bands | Dual Band 2.4 GHz and 5 GHz, Channels 1-13, UNII-1, 2a, 2e and 3 |
| Host Interfaces | USB (Host), 12 Programmable I/O Pins (GPIOs) |
| Serial Data Rates | 9600 bps to 4 Mbps (software selectable) |
| IEEE 80211n Data Rate | 802.11 n (1×1) up to 150 Mbps |
| IEEE 80211 A B G Data Rate | IEEE 802.11 a/b/g up to 54 Mbps |
| Max Current Consumption Boot Peak | 580 mA (xPico 240) |
Documentation
Frequently Asked Questions
Does XPC240200B-02 support both 2.4 GHz and 5 GHz Wi-Fi?▾
Yes. The xPico 240 wireless specifications list Dual Band 2.4 GHz and 5 GHz support, with IEEE 802.11 a/b/g up to 54 Mbps and 802.11 n (1×1) up to 150 Mbps.
Is this the LGA version or the Edge Card version?▾
This SKU is the LGA tape-and-reel configuration. The part description specifies 802.11 A/B/G/N, Ethernet, on-module antenna, industrial temperature, LGA T&R 250.
How can the xPico 240 be managed?▾
The listed management interfaces include Lantronix Percepxion™ Cloud Software Platform, REST, MQTT, Lantronix Discovery Protocol (77FE), Serial Port, Internal Web Server (HTTP/HTTPS), XML Configuration and XML Status, and Secure Firmware Upgrade via HTTPS and Percepxion™.
What temperature range is listed for the xPico 240 series?▾
The operating conditions list Operating Temp: -40°C to +85°C and Storage Temp: -40°C to +100°C.
