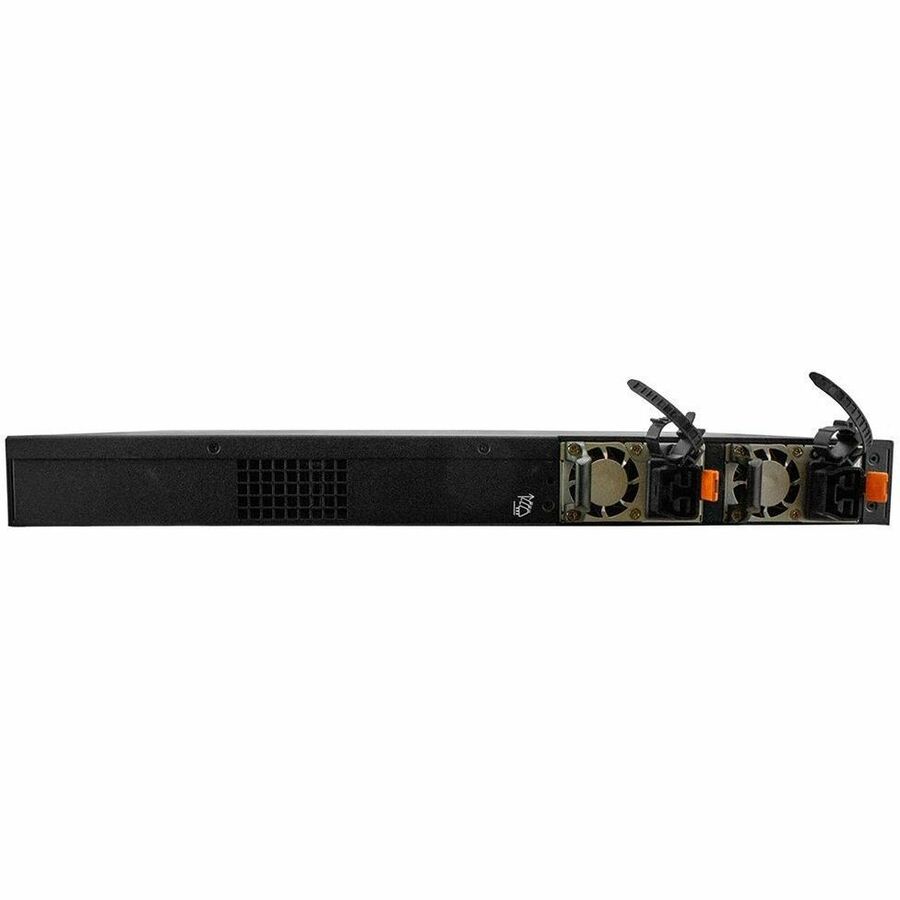

Lantronix SM24TBT2DPB managed PoE++ switch with 24 10/100/1000 RJ-45 ports and 2 SFP/RJ-45 combo ports

Lantronix SM24TBT2DPB-2XPS-BR — 24-Port PoE++ Managed Switch

Lantronix|

MPN: SM24TBT2DPB-2XPS-BR

|

UPC: 783384254718

Available on Backorder
$2,620.14$3,903.90

Ships from and sold by A5 IT

Available on backorder — ships as soon as stock arrives

Request for QuoteCall 224-312-2244 for Sales
Free 2-3 Day Shipping — no minimumShips as soon as stock arrives. We'll confirm the lead time before your card is charged.
New, with full manufacturer warranty

Key Features

  • PoE++ access: 24 10/100/1000Base-T ports supply up to 90 Watts per port
  • Combo connectivity: 2 100/1000Base-X SFP/RJ-45 combo ports provide additional dual speed ports
  • Switching capacity: 52 Gbps backplane supports Layer 2 managed switching
  • Power redundancy: dual hot-swappable PS-ACDC-1200 power supplies support failover
  • Percepxion management: Lantronix cloud based Percepxion software platform provides device life cycle management, enterprise application integration and data analytics
  • DMS monitoring: Topology view, Floor view, Map view, traffic monitoring and network diagnostics
  • Hot-swappable dual power supply modules
  • Supports IPv4/IPv6 dual protocol stack
Lantronix SM24TBT2DPB-2XPS-BR is a Layer 2 managed PoE++ switch with (24) 10/100/1000Mbps copper ports and (2) 100/1000Mbps dual speed SFP/RJ-45 combo ports. It provides 52 Gbps switching capacity and supports IEEE 802.3bt PoE++ with up to 90 Watts per port. This configuration includes dual hot-swappable PS-ACDC-1200 power supplies for power redundancy and failover. With those supplies installed, the switch can provide full PoE++ output on all 24 ports. The switch comes integrated with the Lantronix cloud based Percepxion software platform for device life cycle management, enterprise application integration and data analytics. DMS adds topology view, floor view, map view, traffic monitoring and network diagnostics through Percepxion or the local web manager.

Ideal For

  • IP surveillance networks using IEEE 802.3bt PoE++ devices
  • Wireless Access Point applications that need managed Gigabit PoE++ access ports
  • Networks that require Percepxion device life cycle management and data analytics
  • Local DMS monitoring with topology view, floor view, map view and traffic monitoring

Specifications

Depth11.8” [300 mm]
Width17.4” [442 mm]
Height1.73” [44 mm]
Weight13.3 lbs [6.03 kg]
Humidity10% to 90% (non-condensing)
StandardsIEEE 802.3; IEEE 802.3u; IEEE 802.3z; IEEE 802.3ae; IEEE 802.3x; IEEE 802.3ad; IEEE 802.1D; IEEE 802.1w; IEEE 802.1s; IEEE 802.1Q; IEEE 802.1p; IEEE 802.1ad; IEEE 802.1AB; IEEE 802.3af; IEEE 802.3at; IEEE 802.3bt; IEEE 802.3az
AC Low-line100 - 120VAC
Combo Ports(2) 100/1000 SFP/RJ-45 combo ports
Power InputDual Hot-Swappable Power Supplies; Power Redundancy, Failover: PS-ACDC-1200
RJ-45 Ports(24) 10/100/1000 RJ-45 ports
Switch TypeLayer 2 managed switch
AC High Line200 - 277VAC
Console Port(1) RJ console port
PoE++ Per PortMax 90 Watts output per port
Hvdc Low-line192 - 254VDC
CertificationsFCC Class A, CE, UL62368-1
Hvdc High-line306-334VDC
Included Cables(2) Saf-D adapter cables and Brazil power cords
Included Mounting19” rack mount brackets
Mac Address Table8K MAC address table
Switching Capacity52 Gbps
Operating Temperature0°C to +40°C
PoE++ Budget AC Low-line900W (single PS), 1,800W (dual PS)
Included Power Supplies(2) PS-ACDC-1200
PoE++ Budget AC High-line1,080W (single PS), 2,160W (dual PS)
PoE++ Budget Hvdc Low-line900W (single PS), 1,800W (dual PS)
PoE++ Budget Hvdc High-line1,080W (single PS), 2,160W (dual PS)
Power Consumption Without PoE++79 Watts with dual AC power modules; 52 Watts with single AC power module

Documentation

Manufacturer Brochure

User Manual

Product Brief

SM24TBT2DPB Product Brief (A4)

PoE Switches & Media Converters Matrix

ITPro Today News Coverage – Tech and Ingenuity Supercharge a Sustainable Hotel

SM24TBT2DPB Quick Start Guide Rev B

SM24TBT2DPB Install Guide Rev E

SM24TBT2DPx Web User Guide Rev K

Frequently Asked Questions

What is included with SM24TBT2DPB-2XPS-BR?▾

It includes 19” rack mount brackets, (2) PS-ACDC-1200 power supplies, (2) Saf-D adapter cables and Brazil power cords.

How much PoE power does this switch provide?▾

The switch supplies up to 90 Watts per port and can provide full PoE++ output on all 24 ports when equipped with the dual hot-swappable PS-ACDC-1200 power supplies.

How is the switch managed?▾

DMS is accessible by Percepxion or the local web manager. Management features also include Web Management, SNMP V1/V2c/V3, Telnet and CLI.

What operating environment is specified?▾

The specified operating range is 0°C to +40°C, with 10% to 90% humidity, non-condensing.
