Lantronix SM24TBT2DPB-JP — Managed PoE++ Switch
$2,915.00
Ships from and sold by A5 IT
Available on backorder — ships as soon as stock arrives
Free 2-3 Day Shipping within the United StatesShips as soon as stock arrives. We'll confirm the lead time before your card is charged.
New, with full manufacturer warranty
Key Features
- 24 10/100/1000Base-T ports with IEEE 802.3bt PoE++ capability
- 2 100/1000Base-X SFP/RJ-45 combo ports for dual-speed uplink options
- 90 Watts per port maximum PoE output
- 52 Gbps switching capacity for the managed Layer 2 switch
- Percepxion integration for device life cycle management, enterprise application integration and data analytics
- DMS graphical monitoring with Topology view, Floor view and Map view
- Included JP configuration with (1) PS-ACDC-1200, Saf-D adapter cables, 19” rack mount brackets and Japan power cord

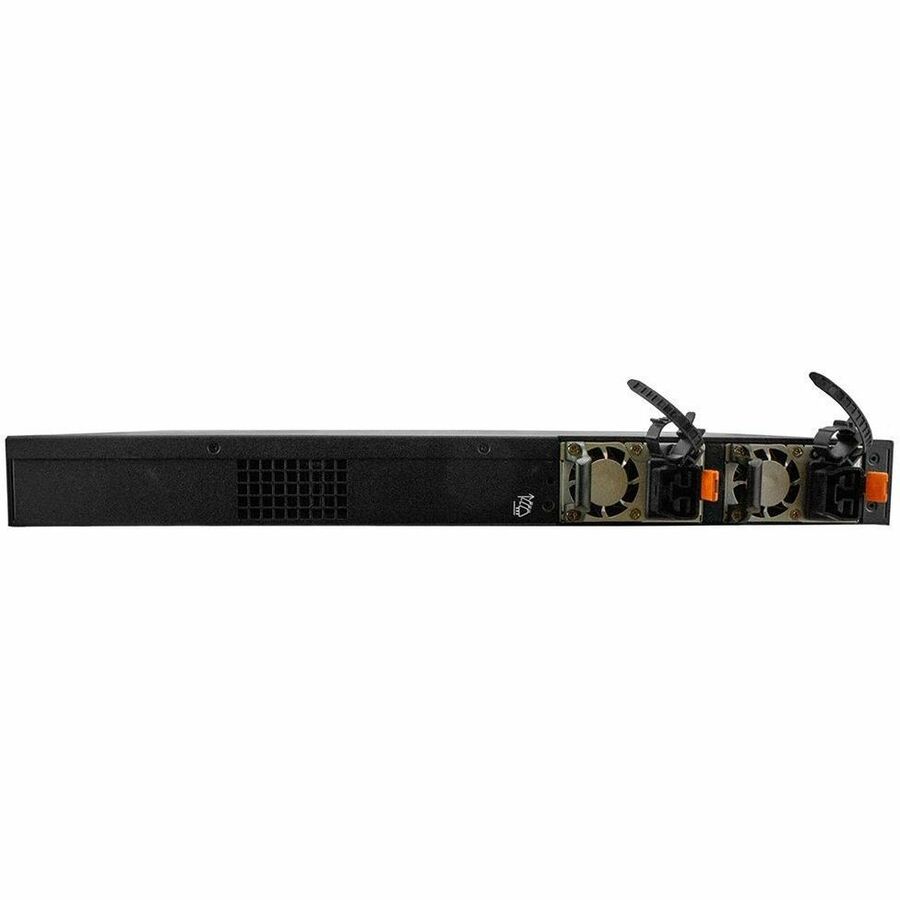

- Hot-swappable dual power supply modules

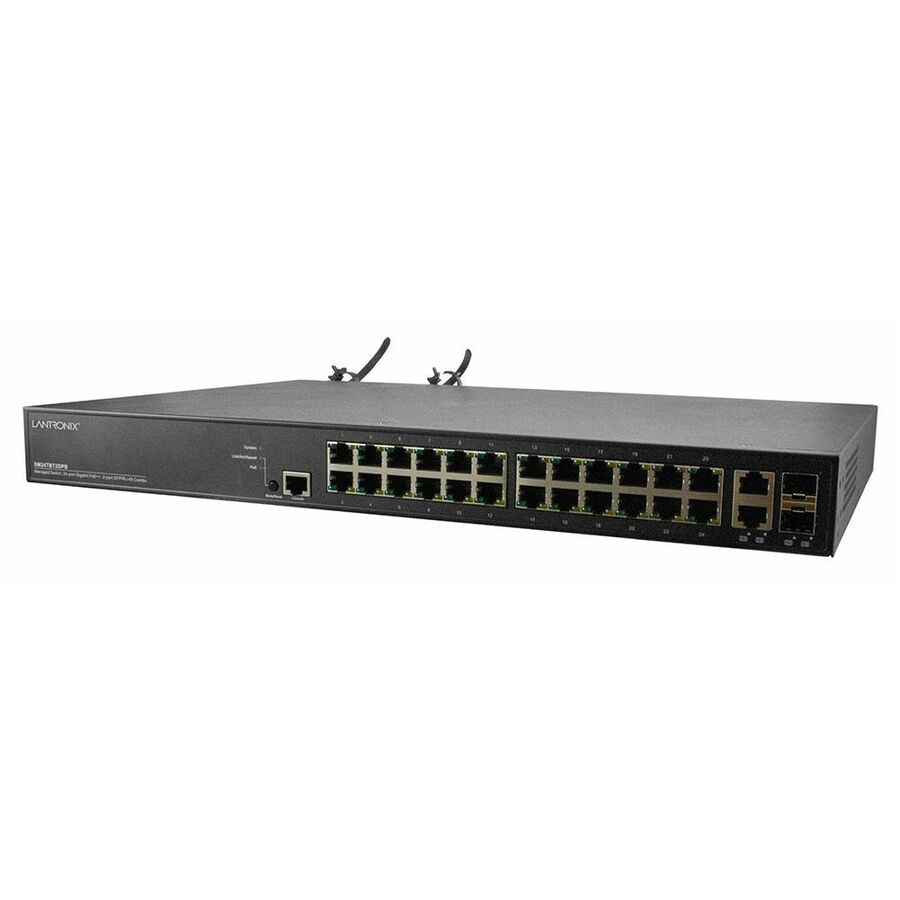

Lantronix SM24TBT2DPB-JP is a high-performance Layer 2 managed PoE++ switch with 52 Gbps switching capacity. It provides (24) 10/100/1000Mbps copper ports with IEEE 802.3bt PoE++ capability and (2) 100/1000Mbps dual-speed SFP/RJ-45 combo ports. The switch complies with IEEE 802.3bt PoE++ and supplies up to 90 Watts per port. This JP SKU includes 19” rack mount brackets, (1) PS-ACDC-1200, (1) Saf-D adapter cables and a Japan power cord. Lantronix integrates these PoE++ switches with the Percepxion cloud based IoT edge solutions platform. DMS is accessible by Percepxion or the local web manager and provides graphical topology, floor and map views, traffic monitoring and network diagnostics for troubleshooting.
Ideal For
- IP surveillance networks using PoE++ ports
- Wireless Access Point deployments using Gigabit PoE++ switching
- Networks managed through Percepxion or the local web manager with DMS topology, floor and map views
- Rack-mounted deployments requiring the JP configuration with Japan power cord
Specifications
| Humidity | 10% to 90% (non-condensing) |
| Standards | IEEE 802.3; IEEE 802.3u; IEEE 802.3z; IEEE 802.3ae; IEEE 802.3x; IEEE 802.3ad; IEEE 802.1D; IEEE 802.1w; IEEE 802.1s; IEEE 802.1Q; IEEE 802.1p; IEEE 802.1ad; IEEE 802.1AB; IEEE 802.3af; IEEE 802.3at; IEEE 802.3bt; IEEE 802.3az |
| Dimensions | 17.4” [442 mm] x 11.8” [300 mm] x 1.73” [44 mm] |
| Form Factor | Rack-mountable |
| RJ-45 Ports | (24) 10/100/1000 RJ-45 ports |
| Console Port | (1) RJ console port |
| PoE++ Per Port | Max 90 Watts output per port |
| Certifications | FCC Class A, CE, UL62368-1 |
| PoE++ Compliance | IEEE 802.3af PoE |
| PoE++ Compliance | IEEE 802.3at PoE+ |
| Limited Warranty | 5 Year Limited Warranty |
| PoE++ Compliance | IEEE 802.3bt PoE++ |
| Mac Address Table | 8K MAC address table |
| Switching Capacity | 52 Gbps |
| Included Power Cord | Japan power cord |
| Included Power Supply | (1) PS-ACDC-1200 |
| Operating Temperature | 0°C to +40°C |
| SFP+ RJ-45 Combo Ports | (2) 100/1000 SFP/RJ-45 combo ports |
| Included Adapter Cables | (1) Saf-D adapter cables |
| Power Input AC Low-line | 100 - 120VAC |
| Power Input AC High Line | 200 - 277VAC |
| Power Input Hvdc Low-line | 192 - 254VDC |
| Power Input Hvdc High-line | 306-334VDC |
| Weight Single Power Supply | 11.3 lbs [5.12 kg] |
| Included Rack Mount Brackets | 19” rack mount brackets |
| Maximum Power Consumption Without PoE++ Dual AC Power Modules | 79 Watts |
| Maximum Power Consumption Without PoE++ Single AC Power Module | 52 Watts |
Documentation
Frequently Asked Questions
What is included with SM24TBT2DPB-JP?▾
SM24TBT2DPB-JP includes 19” rack mount brackets, (1) PS-ACDC-1200, (1) Saf-D adapter cables and a Japan power cord.
What network ports does this switch provide?▾
It provides (24) 10/100/1000Base-T ports and (2) 100/1000Base-X SFP/RJ-45 combo ports. It also has (1) RJ console port.
How much PoE power does it support per port?▾
The switch complies with IEEE 802.3bt PoE++ and supplies up to 90 Watts per port. The listed PoE budget varies by input and power-supply configuration.
What management tools are listed for this switch?▾
Lantronix lists Percepxion integration and DMS features including Topology view, Floor view, Map view, Traffic Monitoring and network diagnostics.
Support & warranty plans
Lantronix LEVEL coverage for this part. Add a plan at the time of purchase to lock in the term from the ship date.
- 1-year technical support
SM24TBT2DPB-JP-L1Y1
$262.35 - 3-year technical support
SM24TBT2DPB-JP-L1Y3
$765.19 - 5-year technical support
SM24TBT2DPB-JP-L1Y5
$1,238.88 - 1-year extended warranty & technical support
SM24TBT2DPB-JP-L2Y1
$378.95 - 3-year extended warranty & technical support
SM24TBT2DPB-JP-L2Y3
$1,093.13 - 5-year extended warranty & technical support
SM24TBT2DPB-JP-L2Y5
$1,749.00
