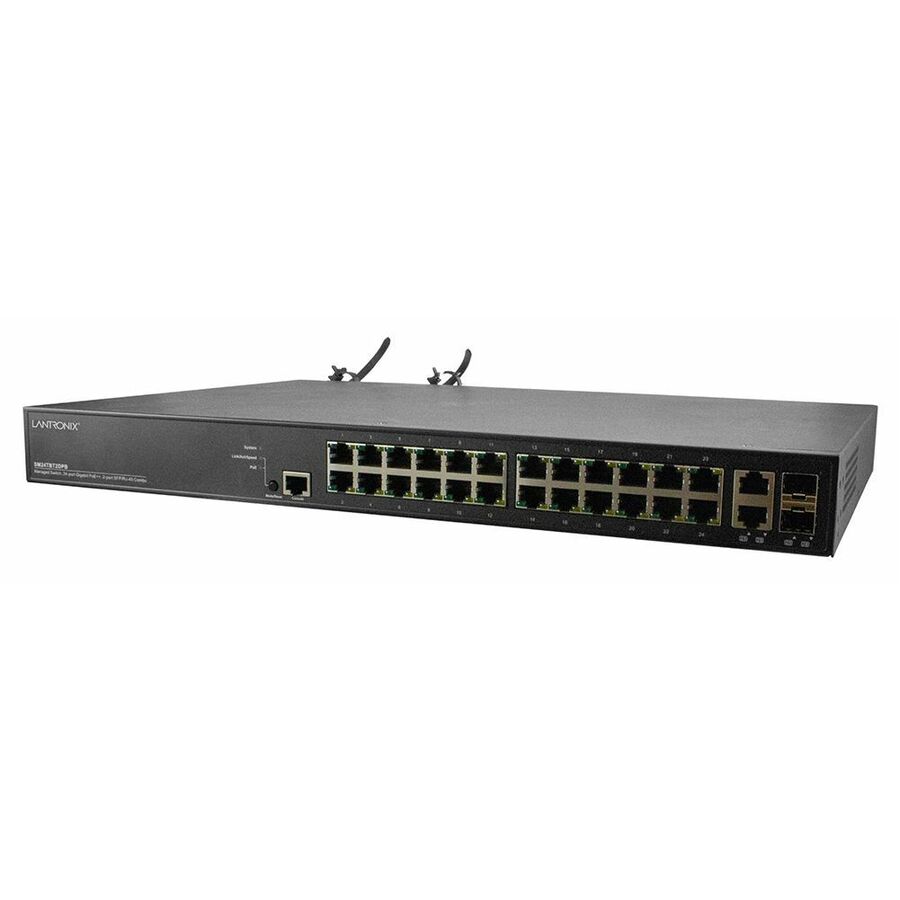

Lantronix SM24TBT2DPB-EU — PoE++ Managed Gigabit Switch
$2,915.00
Ships from and sold by A5 IT
Available on backorder — ships as soon as stock arrives
Free 2-3 Day Shipping within the United StatesShips as soon as stock arrives. We'll confirm the lead time before your card is charged.
New, with full manufacturer warranty
Key Features
- 24 10/100/1000 RJ-45 ports with IEEE 802.3bt PoE++ capability
- 2 100/1000 SFP/RJ-45 combo ports for additional uplink options
- 90 Watts max output per port with IEEE 802.3bt, IEEE 802.3at and IEEE 802.3af compliance
- 52 Gbps backplane with 8K MAC address table
- Percepxion integration for device life cycle management, enterprise application integration and data analytics
- DMS graphical monitoring with Topology view, Floor view and Map view
- Included 19” rack mount brackets, (1) PS-ACDC-1200, (1) Saf-D adapter cables and European power cord
- Hot-swappable dual power supply modules
The Lantronix SM24TBT2DPB-EU is a Layer 2 managed switch with (24) 10/100/1000Base-T ports and (2) 100/1000Base-X SFP/RJ-45 combo ports. It complies with IEEE 802.3bt PoE++ and supplies up to 90 Watts per port. The switch is integrated with Lantronix’s Percepxion cloud based IoT edge solutions platform for device life cycle management, enterprise application integration and data analytics through a single pane of glass. DMS is accessible by Percepxion or the local web manager. It provides graphical network topology, floor map creator, device map view, traffic monitoring and network diagnostics for troubleshooting. This EU SKU includes 19” rack mount brackets, (1) PS-ACDC-1200, (1) Saf-D adapter cables and European power cord.
Ideal For
- IP surveillance networks using IEEE 802.3bt PoE++ ports
- Wireless Access Point deployments using managed PoE switching
- Managed networks that need Percepxion device life cycle management
- Local or cloud-accessed DMS monitoring with topology, floor and map views
Specifications
| Security | Supports SSH v1/SSH v2/SSL |
| Backplane | 52 Gbps |
| Protocols | CSMA/CD |
| Management | Web Management, SNMP V1/V2c/V3, Telnet, CLI |
| Jumbo Frame | Up to 9K bytes |
| Switch Type | Layer 2 managed switch |
| Authentication | RADIUS, TACACS+ |
| Rj Console Port | (1) RJ console port |
| AC Low-line Input | 100 - 120VAC |
| Mac Address Table | 8K MAC address table |
| AC High-line Input | 200 - 277VAC |
| Hvdc Low-line Input | 192 - 254VDC |
| Included Power Cord | European power cord |
| PoE++ Output Per Port | Max 90 Watts output per port |
| Hvdc High-line Input | 306-334VDC |
| Included Power Supply | (1) PS-ACDC-1200 |
| SFP+ RJ-45 Combo Ports | (2) 100/1000 SFP/RJ-45 combo ports |
| 10 100 1000 RJ-45 Ports | (24) 10/100/1000 RJ-45 ports |
| Included Rack Mount Brackets | 19” rack mount brackets |
| Included Saf-d Adapter Cables | (1) Saf-D adapter cables |
| PoE++ Budget At AC Low-line Dual Ps | 1,800W (dual PS) |
| PoE++ Budget At AC High-line Dual Ps | 2,160W (dual PS) |
| PoE++ Budget At AC Low-line Single Ps | 900W (single PS) |
| PoE++ Budget At Hvdc Low-line Dual Ps | 1,800W (dual PS) |
| PoE++ Budget At AC High-line Single Ps | 1,080W (single PS) |
| PoE++ Budget At Hvdc High-line Dual Ps | 2,160W (dual PS) |
| PoE++ Budget At Hvdc Low-line Single Ps | 900W (single PS) |
| PoE++ Budget At Hvdc High-line Single Ps | 1,080W (single PS) |
| Maximum Power Consumption Without PoE++ With Dual AC Power Modules | 79 Watts with dual AC power modules |
| Maximum Power Consumption Without PoE++ With Single AC Power Module | 52 Watts with single AC power module |
Documentation
Frequently Asked Questions
What ports does the SM24TBT2DPB-EU include?▾
It provides (24) 10/100/1000 RJ-45 ports, (2) 100/1000 SFP/RJ-45 combo ports, and (1) RJ console port.
What is included with the SM24TBT2DPB-EU SKU?▾
The part row lists 19” rack mount brackets, (1) PS-ACDC-1200, (1) Saf-D adapter cables and European power cord.
Does this switch work with Percepxion?▾
Yes. The switch is integrated with Lantronix’s Percepxion cloud based IoT edge solutions platform, and DMS is accessible by Percepxion or the local web manager.
How much PoE power can each port supply?▾
The switch complies with IEEE 802.3bt PoE++ and supplies up to 90 Watts per port.
