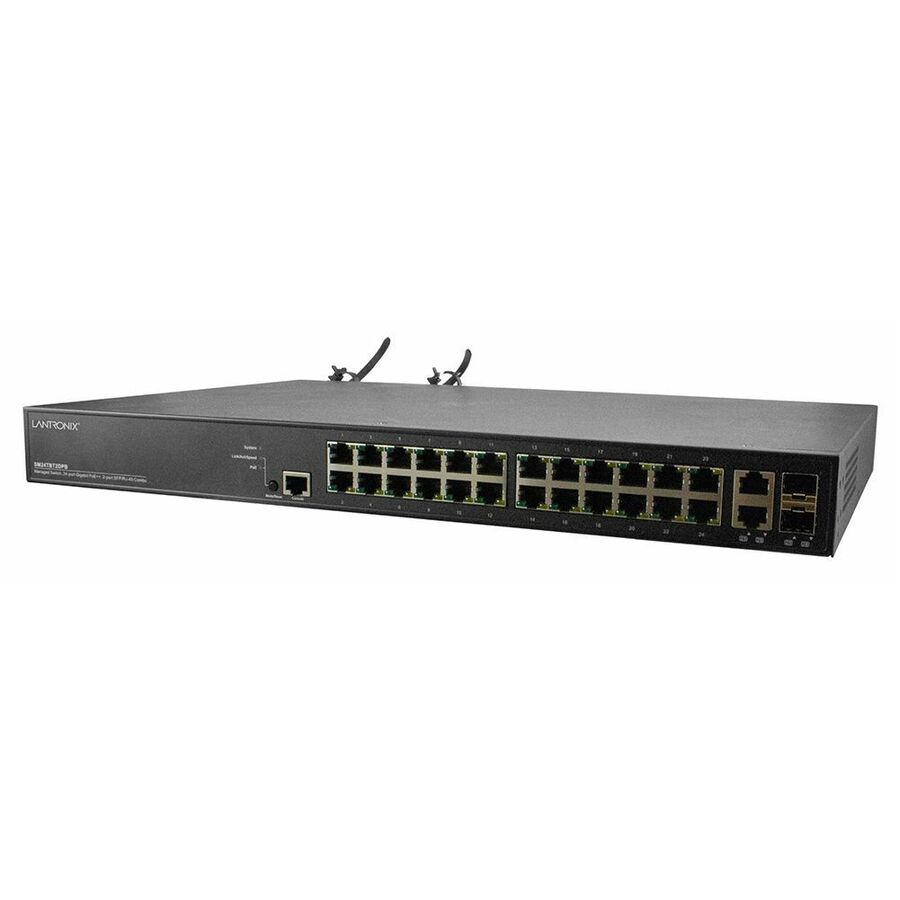

Lantronix SM24TBT2DPB-OZ — Managed PoE++ Switch
$2,000.91$2,915.00
Ships from and sold by A5 IT
Available on backorder — ships as soon as stock arrives
Free 2-3 Day Shipping — no minimumShips as soon as stock arrives. We'll confirm the lead time before your card is charged.
New, with full manufacturer warranty
Key Features
- 24 10/100/1000Base-T PoE++ ports supply up to 90 Watts per port
- 2 100/1000Base-X SFP/RJ-45 combo ports provide additional dual-speed connections
- 52 Gbps switching capacity supports Layer 2 managed switching
- Percepxion integration provides device life cycle management, enterprise application integration and data analytics
- DMS graphical monitoring includes Topology view, Floor view and Map view
- Hot-swappable dual power supply modules support power redundancy and failover with PS-ACDC-1200
- OZ configuration includes 19” rack mount brackets, (1) PS-ACDC-1200, (1) Saf-D adapter cables and Australia power cord
- Hot-swappable dual power supply modules
Lantronix SM24TBT2DPB-OZ is a high-performance Layer 2 managed switch with 52 Gbps switching capacity. It provides 24 10/100/1000Mbps copper ports with IEEE 802.3bt PoE++ capability and 2 additional 100/1000Mbps dual speed SFP/RJ-45 combo ports. The switch complies with IEEE 802.3bt PoE++ and supplies up to 90 Watts per port. Lantronix states it can provide full PoE++ output on all 24 ports when equipped with dual hot-swappable PS-ACDC-1200 power supplies; this OZ part row includes one PS-ACDC-1200. Percepxion integration provides device life cycle management, enterprise application integration and data analytics. DMS is accessible by Percepxion or the local web manager and adds topology view, floor view, map view, traffic monitoring and network diagnostics for troubleshooting. This configuration includes 19” rack mount brackets, (1) PS-ACDC-1200, (1) Saf-D adapter cables and an Australia power cord.
Ideal For
- IP surveillance networks using IEEE 802.3bt PoE++ devices
- Wireless Access Point deployments using managed PoE features
- Device management through Percepxion or the local web manager
- PoE operations using PoE Scheduling, Auto Power Reset, DHCP per Port and Always on PoE
Specifications
| Depth | 11.8” [300 mm] |
| Width | 17.4” [442 mm] |
| Height | 1.73” [44 mm] |
| Humidity | 10% to 90% (non-condensing) |
| Combo Ports | (2) 100/1000 SFP/RJ-45 combo ports |
| RJ-45 Ports | (24) 10/100/1000 RJ-45 ports |
| Console Port | (1) RJ console port |
| PoE++ Per Port | Max 90 Watts output per port |
| Certifications | FCC Class A, CE, UL62368-1 |
| Mac Address Table | 8K |
| Switching Capacity | 52 Gbps |
| Included Power Cord | Australia power cord |
| Included Power Supply | (1) PS-ACDC-1200 |
| Operating Temperature | 0°C to +40°C |
| PoE++ Budget AC Low-line | 900W (single PS), 1,800W (dual PS) |
| PoE++ Budget AC High-line | 1,080W (single PS), 2,160W (dual PS) |
| Power Input AC Low-line | 100 - 120VAC |
| PoE++ Budget Hvdc Low-line | 900W (single PS), 1,800W (dual PS) |
| Power Input AC High Line | 200 - 277VAC |
| PoE++ Budget Hvdc High-line | 1,080W (single PS), 2,160W (dual PS) |
| Power Input Hvdc Low-line | 192 - 254VDC |
| Power Input Hvdc High-line | 306-334VDC |
| Weight Single Power Supply | 11.3 lbs [5.12 kg] |
| Included Rack Mount Brackets | 19” rack mount brackets |
| Included Saf-d Adapter Cables | (1) Saf-D adapter cables |
| Power Consumption Without PoE++ Dual AC Power Modules | 79 Watts with dual AC power modules |
| Power Consumption Without PoE++ Single AC Power Module | 52 Watts with single AC power module |
Documentation
Frequently Asked Questions
What is included with SM24TBT2DPB-OZ?▾
SM24TBT2DPB-OZ includes 19” rack mount brackets, (1) PS-ACDC-1200, (1) Saf-D adapter cables and an Australia power cord.
How much PoE power does the switch support?▾
The switch complies with IEEE 802.3bt PoE++ and supplies up to 90 Watts per port. Lantronix states it can provide full PoE++ output on all 24 ports when equipped with dual hot-swappable PS-ACDC-1200 power supplies.
How is the switch managed?▾
DMS is accessible by Percepxion or the local web manager. Software features also list Web Management, SNMP V1/V2c/V3, Telnet and CLI.
What operating environment is specified?▾
The specified operating range is 0°C to +40°C with 10% to 90% humidity, non-condensing.
