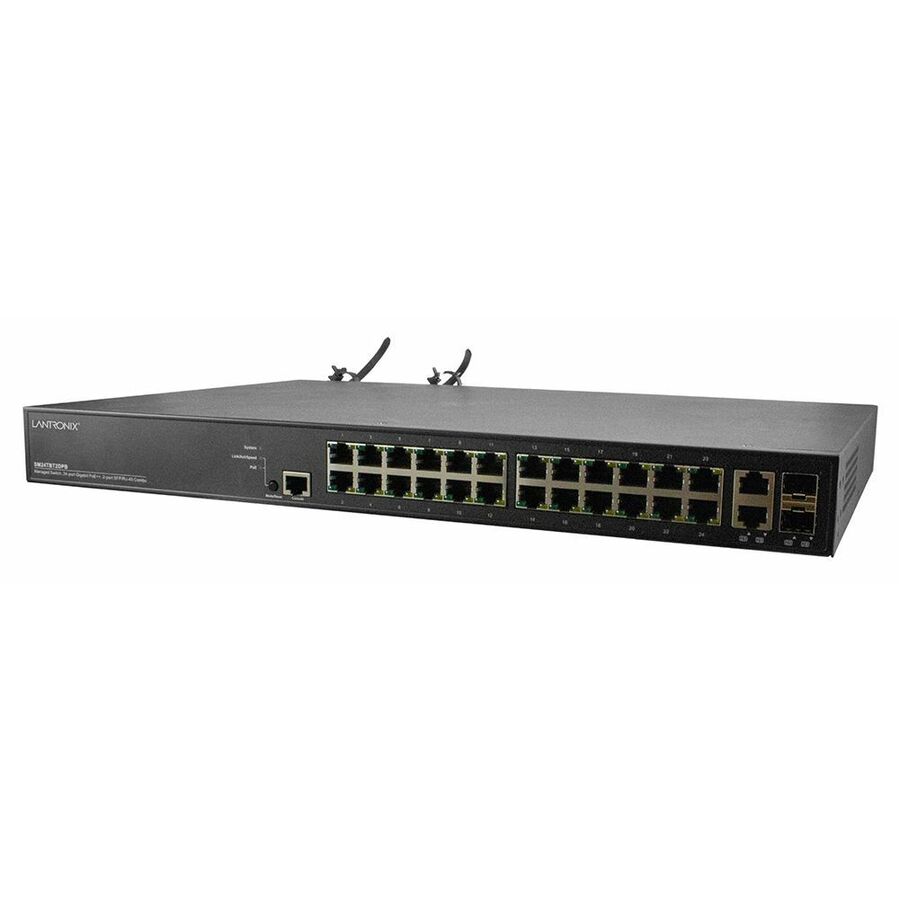

Lantronix SM24TBT2DPB-UK 24-port Gigabit PoE++ managed switch

Lantronix SM24TBT2DPB-UK — Managed PoE++ Switch Saf-D Adapter Cables

Lantronix|

MPN: SM24TBT2DPB-UK

|

UPC: 783384250970

Available on Backorder
$2,000.91$2,915.00

Ships from and sold by A5 IT

Available on backorder — ships as soon as stock arrives

Request for QuoteCall 224-312-2244 for Sales
Free 2-3 Day Shipping — no minimumShips as soon as stock arrives. We'll confirm the lead time before your card is charged.
New, with full manufacturer warranty

Key Features

  • 24 10/100/1000Base-T ports with IEEE 802.3bt PoE++ capability
  • 2 100/1000Base-X SFP/RJ-45 combo ports
  • 52 Gbps switching capacity for Layer 2 managed switching
  • 90 Watts per port maximum PoE++ output
  • Percepxion integration for device life cycle management, enterprise application integration, and data analytics
  • DMS graphical monitoring with topology view, floor view, and map view
  • UK configuration with 19” rack mount brackets, (1) PS-ACDC-1200, (1) Saf-D adapter cables, and United Kingdom power cord

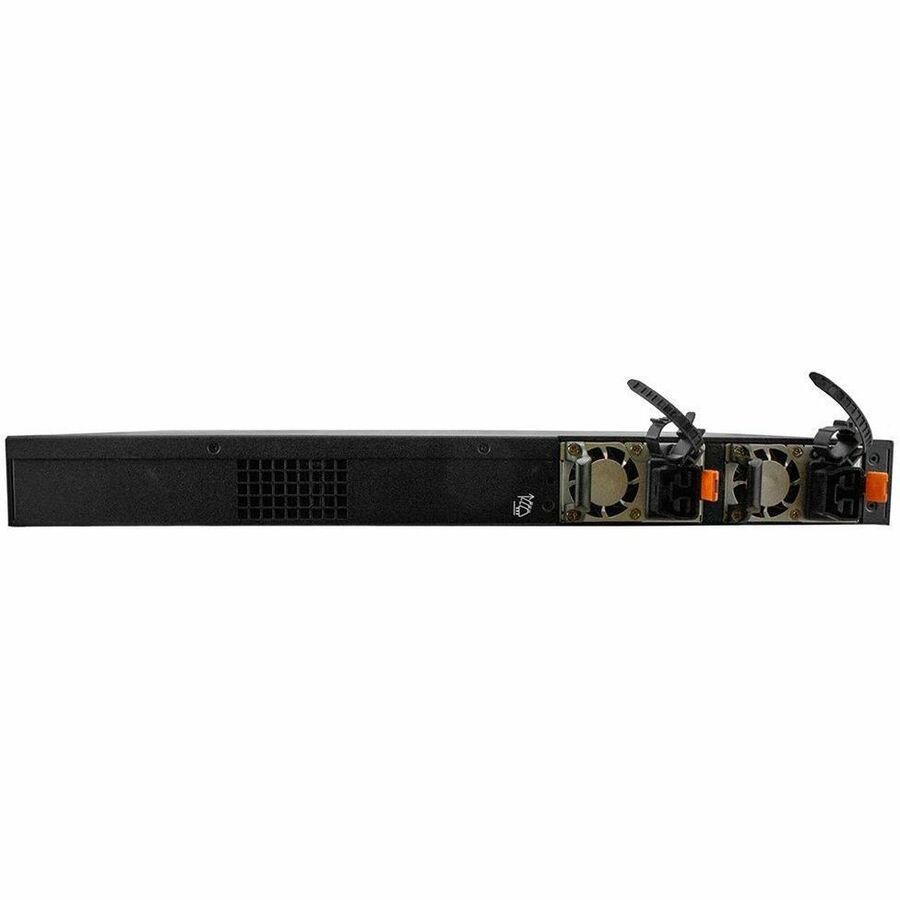

  • Hot-swappable dual power supply modules
The Lantronix SM24TBT2DPB-UK is a high-performance Layer 2 managed switch with 52 Gbps switching capacity. It provides (24) 10/100/1000Mbps copper ports with IEEE 802.3bt PoE++ capability and (2) additional 100/1000Mbps dual speed SFP/RJ-45 combo ports. The switch complies with IEEE 802.3bt PoE++ and supplies up to 90 Watts per port. It can provide full PoE++ output on all 24 ports when equipped with dual hot-swappable PS-ACDC-1200 power supplies. SM24TBT2DPB switches come integrated with Lantronix’s Percepxion cloud based IoT edge solutions platform for device life cycle management, enterprise application integration, and data analytics. DMS, accessible by Percepxion or the local web manager, adds topology view, floor view, map view, traffic monitoring, and network diagnostics. SM24TBT2DPB-UK includes 19” rack mount brackets, (1) PS-ACDC-1200, (1) Saf-D adapter cables, and a United Kingdom power cord.

Ideal For

  • IP surveillance networks using PoE++ endpoints
  • Wireless Access Point applications
  • Device life cycle management through Percepxion
  • Traffic monitoring and network diagnostics through DMS

Specifications

Depth11.8” [300 mm]
Width17.4” [442 mm]
Height1.73” [44 mm]
WeightSM24TBT2DPB (single power supply) = 11.3 lbs [5.12 kg]
Humidity10% to 90% (non-condensing)
Power CordUnited Kingdom power cord
AC Low-line100 - 120VAC
Power InputDual Hot-Swappable Power Supplies; Power Redundancy, Failover: PS-ACDC-1200
AC High Line200 - 277VAC
Console Port(1) RJ console port
PoE++ StandardIEEE 802.3bt PoE++; IEEE 802.3at PoE+; IEEE 802.3af PoE
CertificationFCC Class A; CE; UL62368-1
Hvdc Low-line192 - 254VDC
Hvdc High-line306-334VDC
Mac Address Table8K
Switching Capacity52 Gbps
PoE++ Output Per PortMax 90 Watts output per port
Rack Mount Brackets19” rack mount brackets
Saf-d Adapter Cables(1) Saf-D adapter cables
Included Power Supply(1) PS-ACDC-1200
Operating Temperature0°C to +40°C
SFP+ RJ-45 Combo Ports(2) 100/1000 SFP/RJ-45 combo ports
10 100 1000 RJ-45 Ports(24)
PoE++ Budget AC Low-line Single Ps900W (single PS)
PoE++ Budget AC High-line Single Ps1,080W (single PS)
Power Consumption With Single AC Power Module52 Watts with single AC power module

Documentation

Manufacturer Brochure

User Manual

Product Brief

SM24TBT2DPB Product Brief (A4)

PoE Switches & Media Converters Matrix

ITPro Today News Coverage – Tech and Ingenuity Supercharge a Sustainable Hotel

SM24TBT2DPB Quick Start Guide Rev B

SM24TBT2DPB Install Guide Rev E

SM24TBT2DPx Web User Guide Rev K

Frequently Asked Questions

How many PoE++ ports does SM24TBT2DPB-UK provide?▾

It provides (24) 10/100/1000Mbps copper ports with IEEE 802.3bt PoE++ capability and up to 90 Watts per port.

What is included with the -UK configuration?▾

SM24TBT2DPB-UK includes 19” rack mount brackets, (1) PS-ACDC-1200, (1) Saf-D adapter cables, and a United Kingdom power cord.

How is the switch managed?▾

The switch is integrated with Lantronix’s Percepxion cloud based IoT edge solutions platform. DMS is accessible by Percepxion or the local web manager, and software management includes Web Management, SNMP V1/V2c/V3, Telnet, and CLI.

What operating environment is specified?▾

The listed operating range is 0°C to +40°C with 10% to 90% humidity, non-condensing.
