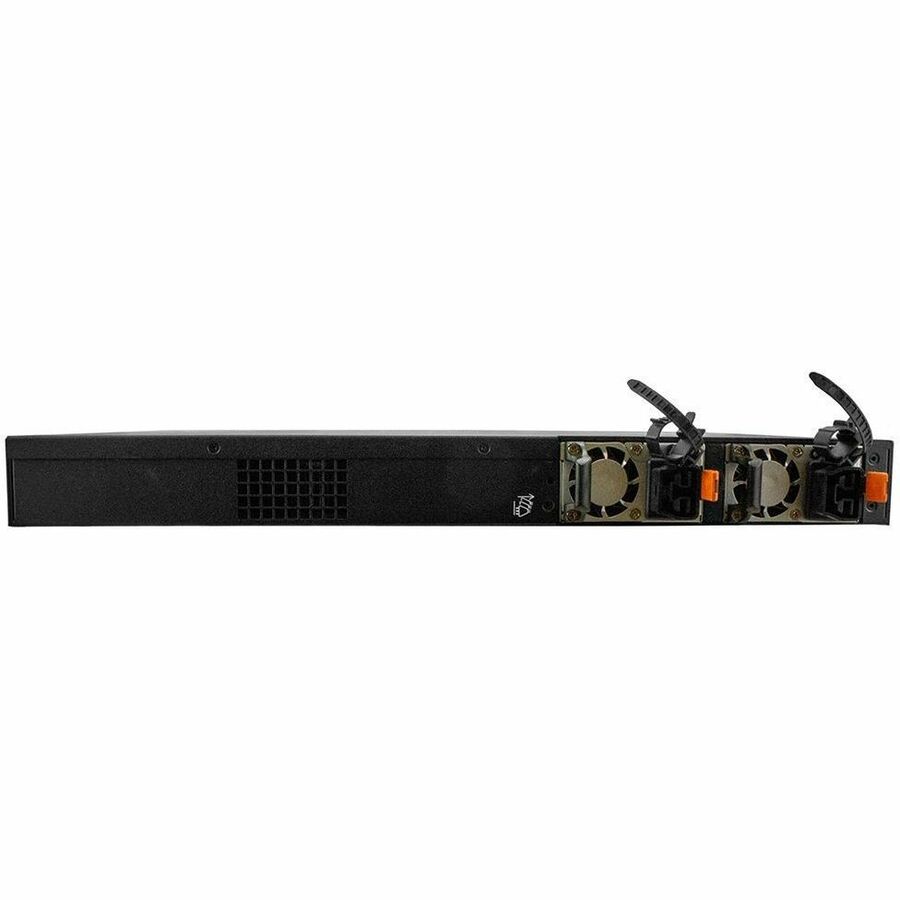

Lantronix SM24TBT2DPB-2XPS-LA — PoE++ Managed Switch
$2,620.14$3,903.90
Ships from and sold by A5 IT
Available on backorder — ships as soon as stock arrives
Free 2-3 Day Shipping — no minimumShips as soon as stock arrives. We'll confirm the lead time before your card is charged.
New, with full manufacturer warranty
Key Features
- 24 10/100/1000Base-T PoE++ ports supply up to 90 Watts per port
- 2 100/1000Base-X SFP/RJ-45 combo ports provide additional dual speed connections
- 52 Gbps switching capacity supports high-performance Layer 2 managed switching
- Dual hot-swappable PS-ACDC-1200 power supplies provide power redundancy and failover
- Percepxion integration provides device life cycle management, enterprise application integration and data analytics
- DMS graphical monitoring includes Topology view, Floor view and Map view
- IPv4/IPv6 dual protocol stack supports current network deployments
- Hot-swappable dual power supply modules
The Lantronix SM24TBT2DPB-2XPS-LA is a high-performance Layer 2 managed switch with 52 Gbps switching capacity. It provides (24) 10/100/1000Mbps copper ports with IEEE 802.3bt PoE++ capability and (2) additional 100/1000Mbps dual speed SFP/RJ-45 combo ports. The switch supplies up to 90 Watts per port. With the dual hot-swappable PS-ACDC-1200 power supplies included in this SKU, it can provide full PoE++ output on all 24 ports. These PoE++ switches come integrated with the Lantronix cloud based Percepxion software platform, providing device life cycle management, enterprise application integration and data analytics through a single pane of glass. The included DMS supports graphical network topology, floor map creator, device map view, traffic monitoring and network diagnostics for troubleshooting. This -LA configuration includes 19” rack mount brackets, (2) PS-ACDC-1200 power supplies, (2) Saf-D adapter cables and Latin America power cords.
Ideal For
- IP surveillance networks using IEEE 802.3bt PoE++ devices
- Wireless Access Point deployments using 10/100/1000Base-T PoE++ ports
- Networks managed through Percepxion with DMS topology, floor and map views
- Installations requiring dual hot-swappable PS-ACDC-1200 power supplies
Specifications
| Depth | 11.8” [300 mm] |
| Width | 17.4” [442 mm] |
| Height | 1.73” [44 mm] |
| Weight | 13.3 lbs [6.03 kg] |
| Humidity | 10% to 90% (non-condensing) |
| Protocol | CSMA/CD |
| Combo Ports | (2) 100/1000 SFP/RJ-45 combo ports |
| Power Input | Dual Hot-Swappable Power Supplies; Power Redundancy, Failover: PS-ACDC-1200 |
| RJ-45 Ports | (24) 10/100/1000 RJ-45 ports |
| Console Port | (1) RJ console port |
| PoE++ Per Port | Max 90 Watts output per port |
| PoE++ Compliance | IEEE 802.3af PoE |
| PoE++ Compliance | IEEE 802.3at PoE+ |
| CE Certification | CE |
| PoE++ Compliance | IEEE 802.3bt PoE++ |
| AC Low-line Input | 100 - 120VAC |
| Energy Efficiency | IEEE 802.3az |
| FCC Certification | FCC Class A |
| Mac Address Table | 8K MAC address table |
| AC High-line Input | 200 - 277VAC |
| Switching Capacity | 52 Gbps |
| Hvdc Low-line Input | 192 - 254VDC |
| Hvdc High-line Input | 306-334VDC |
| Operating Temperature | 0°C to +40°C |
| AC Low-line PoE++ Output | 900W (single PS), 1,800W (dual PS) |
| AC High-line PoE++ Output | 1,080W (single PS), 2,160W (dual PS) |
| Included Power Supplies | (2) PS-ACDC-1200 |
| Hvdc Low-line PoE++ Output | 900W (single PS), 1,800W (dual PS) |
| Hvdc High-line PoE++ Output | 1,080W (single PS), 2,160W (dual PS) |
| Power Consumption Without PoE++ | 79 Watts with dual AC power modules; 52 Watts with single AC power module |
Documentation
Frequently Asked Questions
What is included with SM24TBT2DPB-2XPS-LA?▾
This SKU includes 19” rack mount brackets, (2) PS-ACDC-1200 power supplies, (2) Saf-D adapter cables and Latin America power cords.
What network ports does this switch provide?▾
It provides (24) 10/100/1000 RJ-45 ports and (2) 100/1000 SFP/RJ-45 combo ports, plus (1) RJ console port.
How much PoE power does it supply per port?▾
The switch supplies up to 90 Watts per port and complies with IEEE 802.3bt PoE++, IEEE 802.3at PoE+ and IEEE 802.3af PoE.
Can the switch be managed through Percepxion?▾
Yes. These PoE++ switches come integrated with Lantronix’s Percepxion cloud based IoT edge solutions platform. DMS is accessible by Percepxion or the local web manager.
