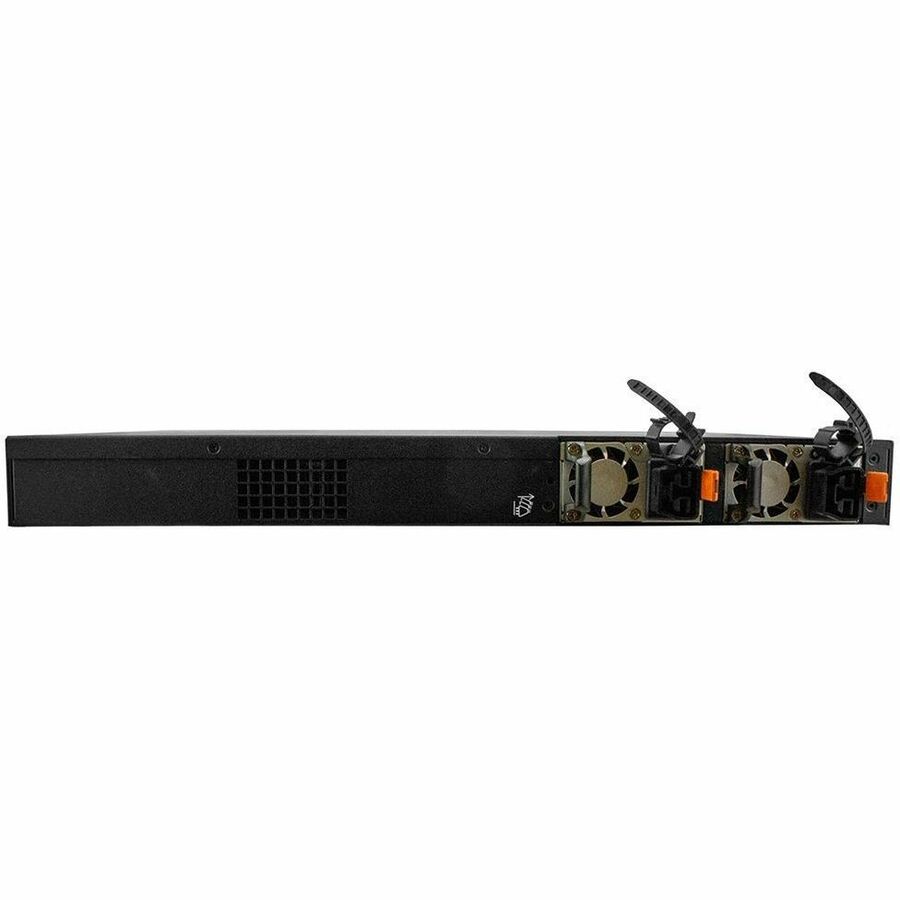

Lantronix SM24TBT2DPB-2XPS-JP — Managed PoE++ Switch
$2,620.14$3,903.90
Ships from and sold by A5 IT
Available on backorder — ships as soon as stock arrives
Free 2-3 Day Shipping — no minimumShips as soon as stock arrives. We'll confirm the lead time before your card is charged.
New, with full manufacturer warranty
Key Features
- 24 10/100/1000 RJ-45 ports with IEEE 802.3bt PoE++ capability
- 2 100/1000 SFP/RJ-45 combo ports for copper or fiber uplinks
- 52 Gbps backplane with an 8K MAC address table
- 90 Watts per port PoE++ output with IEEE 802.3af, IEEE 802.3at and IEEE 802.3bt compliance
- Dual hot-swappable PS-ACDC-1200 power supplies with power redundancy and failover
- Percepxion integration for device life cycle management, enterprise application integration and data analytics
- DMS graphical monitoring with Topology view, Floor view and Map view
- Hot-swappable dual power supply modules
Lantronix SM24TBT2DPB-2XPS-JP is a high-performance Layer 2 managed switch with 52 Gbps switching capacity. It provides (24) 10/100/1000Mbps copper ports with IEEE 802.3bt PoE++ capability and (2) 100/1000Mbps dual speed SFP/RJ-45 combo ports. The switch complies with IEEE 802.3bt PoE++ and supplies up to 90 Watts per port. This SKU includes 19” rack mount brackets, (2) PS-ACDC-1200 power supplies, (2) Saf-D adapter cables and Japan power cords. Lantronix integrates these PoE++ switches with the Percepxion cloud based IoT edge solutions platform for device life cycle management, enterprise application integration and data analytics. DMS is accessible by Percepxion or the local web manager and provides graphical topology, floor and map views, traffic monitoring and network diagnostics.
Ideal For
- IP surveillance networks using IEEE 802.3bt PoE++ endpoints
- Wireless Access Point deployments that require managed Gigabit PoE++ switching
- Managed Ethernet networks using VLAN, QoS, IGMP Snooping and Spanning Tree features
- Network device management with DMS Topology view, Floor view, Map view, traffic monitoring and diagnostics
Specifications
| Weight | 13.3 lbs [6.03 kg] |
| Humidity | 10% to 90% (non-condensing) |
| Protocol | CSMA/CD |
| Backplane | 52 Gbps |
| Dimensions | 17.4” [442 mm] x 11.8” [300 mm] x 1.73” [44 mm] |
| RJ-45 Ports | (24) 10/100/1000 RJ-45 ports |
| Console Port | (1) RJ console port |
| PoE++ Standard | IEEE 802.3bt; IEEE 802.3af |
| Certification | FCC Class A; CE; UL62368-1 |
| PoE++ Standard | IEEE 802.3at |
| Included Cables | (2) Saf-D adapter cables |
| Limited Warranty | 5 Year Limited Warranty |
| Power Redundancy | Failover: PS-ACDC-1200 |
| AC Low-line Input | 100 - 120VAC |
| Included Brackets | 19” rack mount brackets |
| Mac Address Table | 8K MAC address table |
| AC High Line Input | 200 - 277VAC |
| Hvdc Low-line Input | 192 - 254VDC |
| PoE++ Output Per Port | Max 90 Watts output per port |
| Hvdc High-line Input | 306-334VDC |
| Included Power Cords | Japan power cords |
| Power Supply Modules | Dual Hot-Swappable Power Supplies |
| Operating Temperature | 0°C to +40°C |
| SFP+ RJ-45 Combo Ports | (2) 100/1000 SFP/RJ-45 combo ports |
| Included Power Supplies | (2) PS-ACDC-1200 |
| Power Consumption Without PoE++ | 79 Watts with dual AC power modules |
| PoE++ Budget AC Low-line Dual Power Supplies | 1,800W |
| PoE++ Budget AC High Line Dual Power Supplies | 2,160W |
| PoE++ Budget Hvdc Low-line Dual Power Supplies | 1,800W |
| PoE++ Budget Hvdc High-line Dual Power Supplies | 2,160W |
Documentation
Frequently Asked Questions
Does SM24TBT2DPB-2XPS-JP include two power supplies?▾
Yes. The part row lists (2) PS-ACDC-1200 power supplies, (2) Saf-D adapter cables, 19” rack mount brackets and Japan power cords.
How many PoE++ ports does this switch provide?▾
It provides (24) 10/100/1000Mbps copper ports with IEEE 802.3bt PoE++ capability and supplies up to 90 Watts per port.
What management options are listed for this switch?▾
The listed management features include Web Management, SNMP V1/V2c/V3, Telnet and CLI. DMS is accessible by Percepxion or the local web manager.
What operating environment is specified?▾
The operating range is 0°C to +40°C, with 10% to 90% humidity, non-condensing.
