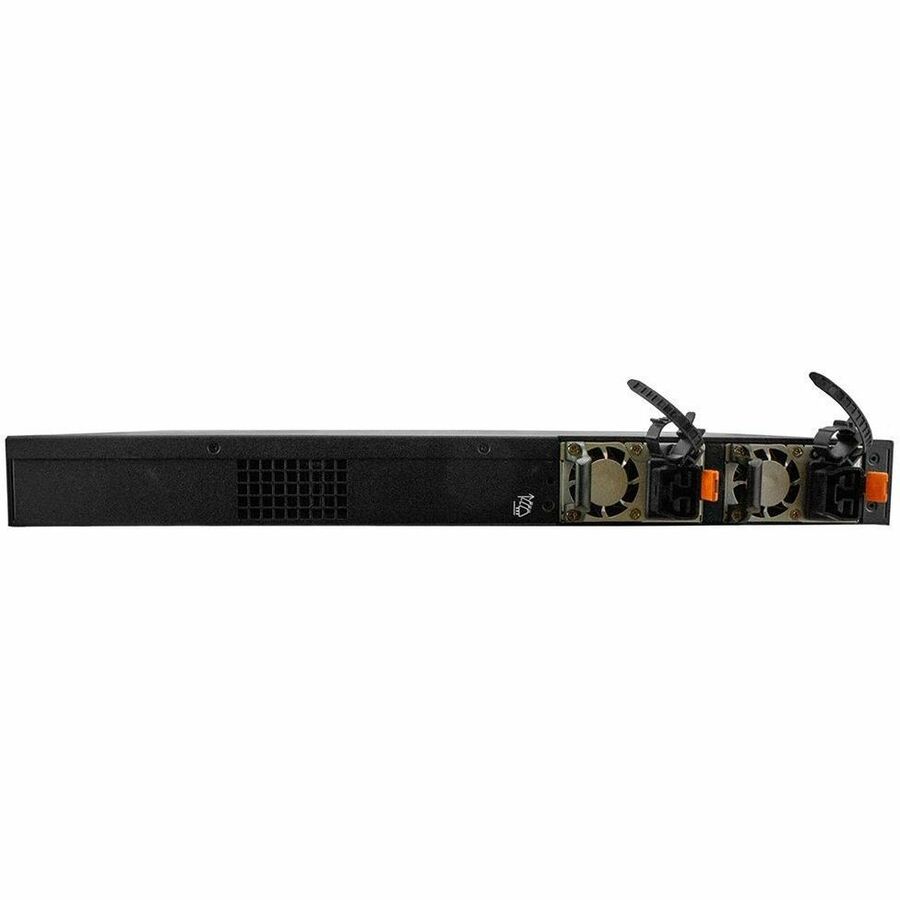

Lantronix SM24TBT2DPB managed PoE++ switch with 24 RJ-45 ports and 2 SFP/RJ-45 combo ports

Lantronix SM24TBT2DPB-2XPS-UK — SM24TBT2DPB 24-Port PoE++ Switch

Lantronix|

MPN: SM24TBT2DPB-2XPS-UK

|

UPC: 783384254787

Available on Backorder
$2,620.14$3,903.90

Ships from and sold by A5 IT

Available on backorder — ships as soon as stock arrives

Request for QuoteCall 224-312-2244 for Sales
Free 2-3 Day Shipping — no minimumShips as soon as stock arrives. We'll confirm the lead time before your card is charged.
New, with full manufacturer warranty

Key Features

  • 24 10/100/1000Base-T PoE++ ports plus 2 100/1000Base-X SFP/RJ-45 combo ports
  • 90 Watts per port with IEEE 802.3bt PoE++ compliance
  • Dual hot-swappable PS-ACDC-1200 power supplies for power redundancy and failover
  • 52 Gbps switching capacity for Layer 2 managed switching
  • Percepxion integration for cloud based IoT edge solutions platform access
  • DMS graphical monitoring with Topology view, Floor view and Map view
  • UK bundle with 19” rack mount brackets, (2) Saf-D adapter cables and United Kingdom power cords
  • Hot-swappable dual power supply modules
Lantronix SM24TBT2DPB-2XPS-UK is a Layer 2 managed PoE++ switch with (24) 10/100/1000Mbps copper ports and (2) additional 100/1000Mbps dual speed SFP/RJ-45 combo ports. It delivers 52 Gbps switching capacity and supports up to 90 Watts per port under IEEE 802.3bt PoE++. This configuration includes (2) PS-ACDC-1200 hot-swappable power supplies, (2) Saf-D adapter cables, United Kingdom power cords and 19” rack mount brackets. With the dual hot-swappable PS-ACDC-1200 power supplies, the switch can provide full PoE++ output on all 24 ports. The switch is integrated with Lantronix’s Percepxion cloud based IoT edge solutions platform. DMS is accessible by Percepxion or the local web manager and provides graphical topology, floor and map views, traffic monitoring and network diagnostics for troubleshooting.

Ideal For

  • IP surveillance networks using PoE++ devices
  • Wireless Access Point deployments requiring PoE++ power
  • Networks that need Percepxion or local web manager access to DMS views and diagnostics
  • Applications that require full PoE++ output on all 24 ports

Specifications

Depth11.8” [300 mm]
Width17.4” [442 mm]
Height1.73” [44 mm]
Humidity10% to 90% (non-condensing)
Backplane52 Gbps
ProtocolsCSMA/CD
ManagementWeb Management, SNMP V1/V2c/V3, Telnet, CLI
Combo Ports(2) 100/1000 SFP/RJ-45 combo ports
Jumbo FrameUp to 9K bytes
Console Port(1) RJ console port
Copper Ports(24) 10/100/1000 RJ-45 ports
PoE++ ComplianceIEEE 802.3af PoE
Power SuppliesDual Hot-Swappable Power Supplies
PoE++ ComplianceIEEE 802.3at PoE+
PoE++ ComplianceIEEE 802.3bt PoE++
Power RedundancyFailover
AC Low-line Input100 - 120VAC
Mac Address Table8K
AC High-line Input200 - 277VAC
Power Supply ModelPS-ACDC-1200
Hvdc Low-line Input192 - 254VDC
PoE++ Output Per PortMax 90 Watts output per port
Hvdc High-line Input306-334VDC
Operating Temperature0°C to +40°C
PoE++ Budget AC Low-line Dual Ps1,800W
PoE++ Budget AC High-line Dual Ps2,160W
PoE++ Budget AC Low-line Single Ps900W
PoE++ Budget AC High-line Single Ps1,080W
Power Consumption Without PoE++ Dual AC Power Modules79 Watts
Power Consumption Without PoE++ Single AC Power Module52 Watts

Documentation

Manufacturer Brochure

User Manual

Product Brief

SM24TBT2DPB Product Brief (A4)

PoE Switches & Media Converters Matrix

ITPro Today News Coverage – Tech and Ingenuity Supercharge a Sustainable Hotel

SM24TBT2DPB Quick Start Guide Rev B

SM24TBT2DPB Install Guide Rev E

SM24TBT2DPx Web User Guide Rev K

Frequently Asked Questions

What network ports are on the SM24TBT2DPB-2XPS-UK?▾

It includes (24) 10/100/1000Base-T ports and (2) 100/1000Base-X SFP/RJ-45 combo ports, plus (1) RJ console port.

Does this UK SKU include power supplies and power cords?▾

Yes. This SKU includes (2) PS-ACDC-1200 power supplies, (2) Saf-D adapter cables and United Kingdom power cords.

What PoE++ output does it support?▾

The switch supplies up to 90 Watts per port and can provide full PoE++ output on all 24 ports when equipped with the dual hot-swappable PS-ACDC-1200 power supplies included with this SKU.

How is the switch managed?▾

Management options listed for the SM24TBT2DPB include Web Management, SNMP V1/V2c/V3, Telnet and CLI. DMS is accessible by Percepxion or the local web manager.
