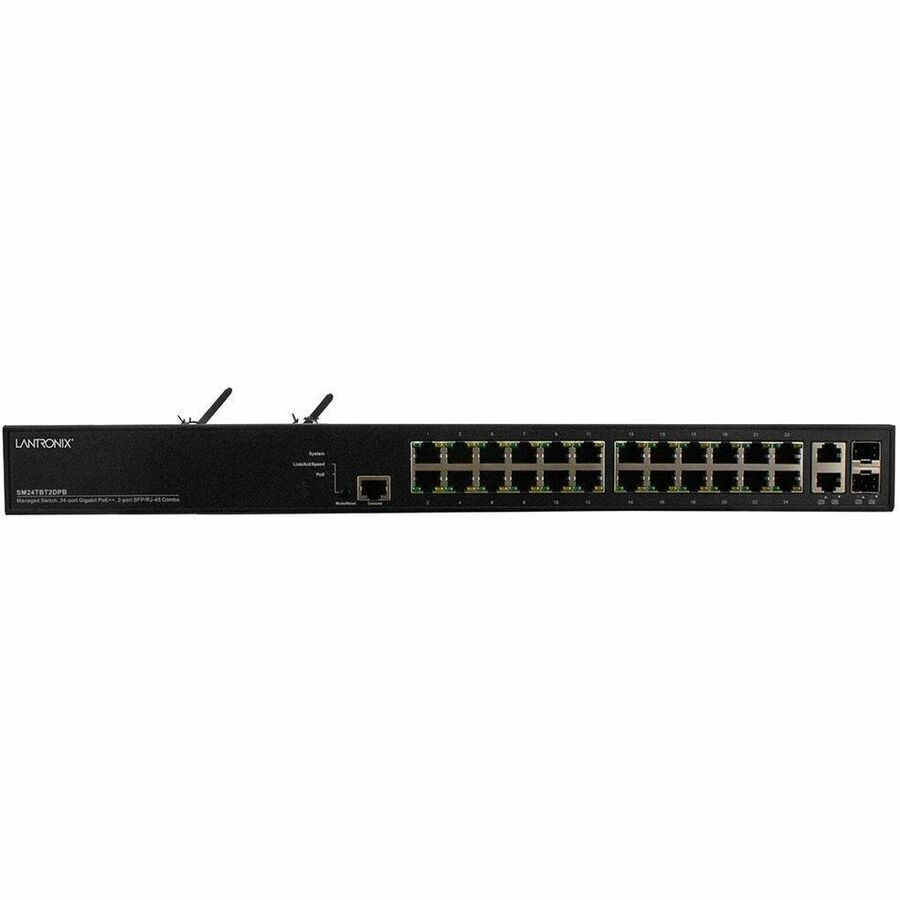

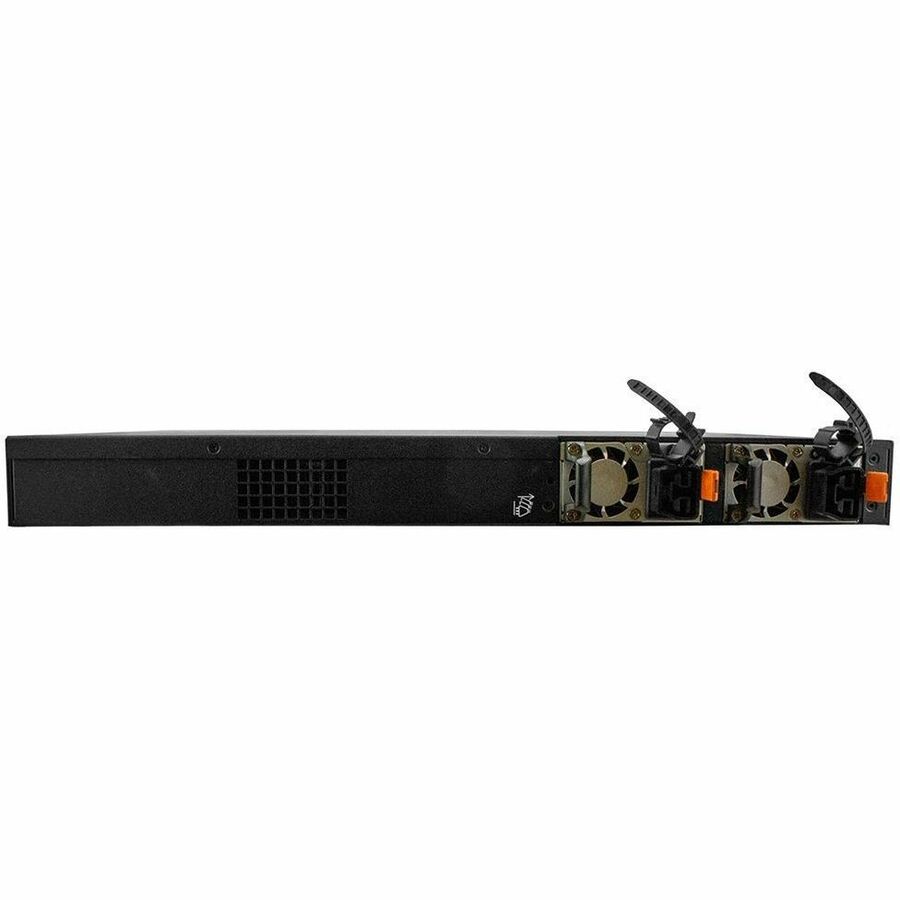

Lantronix SM24TBT2DPB 24-port Gigabit PoE++ managed switch with dual power supplies

Lantronix SM24TBT2DPB-2XPS-OZ — SM24TBT2DPB 24-Port PoE++ Switch

Lantronix|

MPN: SM24TBT2DPB-2XPS-OZ

|

UPC: 783384254763

Available on Backorder
$2,620.14$3,903.90

Ships from and sold by A5 IT

Available on backorder — ships as soon as stock arrives

Request for QuoteCall 224-312-2244 for Sales
Free 2-3 Day Shipping — no minimumShips as soon as stock arrives. We'll confirm the lead time before your card is charged.
New, with full manufacturer warranty

Key Features

  • 24 10/100/1000Base-T PoE++ ports supply up to 90 Watts per port
  • 2 100/1000Base-X SFP/RJ-45 combo ports add dual-speed combo connectivity
  • 52 Gbps switching capacity supports Layer 2 managed switching
  • Dual hot-swappable PS-ACDC-1200 power supplies support power redundancy and failover
  • Percepxion integration provides device life cycle management, enterprise application integration, and data analytics
  • Device Management System provides topology view, floor view, map view, traffic monitoring, and network diagnostics
  • Included hardware comprises 19” rack mount brackets, (2) PS-ACDC-1200 power supplies, (2) Saf-D adapter cables, and Australia power cords
  • Hot-swappable dual power supply modules
The Lantronix SM24TBT2DPB is a high-performance Layer 2 managed switch with 52 Gbps switching capacity. It provides (24) 10/100/1000Mbps copper ports with IEEE 802.3bt PoE++ capability and (2) 100/1000Mbps dual-speed SFP/RJ-45 combo ports. This SM24TBT2DPB-2XPS-OZ configuration includes (2) PS-ACDC-1200 hot-swappable power supplies, 19” rack mount brackets, (2) Saf-D adapter cables, and Australia power cords. With dual hot-swappable PS-ACDC-1200 power supplies, the switch can provide full PoE++ output on all 24 ports. The switch is integrated with Lantronix’s Percepxion cloud based IoT edge solutions platform for device life cycle management, enterprise application integration, and data analytics. Its Device Management System is accessible by Percepxion or the local web manager and supports graphical monitoring, traffic monitoring, and network diagnostics.

Ideal For

  • IP surveillance networks that need IEEE 802.3bt PoE++ ports
  • Wireless Access Point deployments using PoE, PoE+, or PoE++
  • Networks that need Percepxion access for device life cycle management and data analytics
  • Installations that need graphical topology, floor, and map views through DMS

Specifications

Depth11.8” [300 mm]
Width17.4” [442 mm]
Height1.73” [44 mm]
Weight13.3 lbs [6.03 kg]
ProtocolsCSMA/CD
ManagementWeb Management, SNMP V1/V2c/V3, Telnet, CLI
Combo Ports(2) 100/1000 SFP/RJ-45 combo ports
Power InputDual Hot-Swappable Power Supplies; Power Redundancy, Failover: PS-ACDC-1200
RJ-45 Ports(24) 10/100/1000 RJ-45 ports
Console Port(1) RJ console port
PoE++ StandardIEEE 802.3af
PoE++ StandardIEEE 802.3at
PoE++ StandardIEEE 802.3bt
TroubleshootingNetwork diagnostic, protection mechanism, performance and link management
AC Low-line Input100 - 120VAC
Mac Address Table8K
AC High-line Input200 - 277VAC
Switching Capacity52 Gbps
Traffic MonitoringTraffic Monitoring
Hvdc Low-line Input192 - 254VDC
PoE++ Output Per PortMax 90 Watts output per port
Graphical MonitoringTopology view, Floor view, Map view
Hvdc High-line Input306-334VDC
Operating Temperature0°C to +40°C
AC Low-line PoE++ Budget900W (single PS), 1,800W (dual PS)
AC High-line PoE++ Budget1,080W (single PS), 2,160W (dual PS)
Included Power Supplies(2) PS-ACDC-1200
Hvdc Low-line PoE++ Budget900W (single PS), 1,800W (dual PS)
Hvdc High-line PoE++ Budget1,080W (single PS), 2,160W (dual PS)
Maximum Power Consumption Without PoE++79 Watts with dual AC power modules

Documentation

Manufacturer Brochure

User Manual

Product Brief

SM24TBT2DPB Product Brief (A4)

PoE Switches & Media Converters Matrix

ITPro Today News Coverage – Tech and Ingenuity Supercharge a Sustainable Hotel

SM24TBT2DPB Quick Start Guide Rev B

SM24TBT2DPB Install Guide Rev E

SM24TBT2DPx Web User Guide Rev K

Frequently Asked Questions

What ports does the SM24TBT2DPB-2XPS-OZ provide?▾

It provides (24) 10/100/1000 RJ-45 ports, (2) 100/1000 SFP/RJ-45 combo ports, and (1) RJ console port.

What is included with this SKU?▾

It includes 19” rack mount brackets, (2) PS-ACDC-1200 power supplies, (2) Saf-D adapter cables, and Australia power cords.

Can this switch provide PoE++ output on all 24 ports?▾

Yes. The SM24TBT2DPB can provide full PoE++ output on all 24 ports when equipped with dual hot-swappable PS-ACDC-1200 power supplies, and this SKU includes two PS-ACDC-1200 power supplies.

How is the switch managed and monitored?▾

The switch is integrated with Lantronix’s Percepxion cloud based IoT edge solutions platform. DMS is accessible by Percepxion or the local web manager and includes topology view, floor view, map view, traffic monitoring, and network diagnostics.
