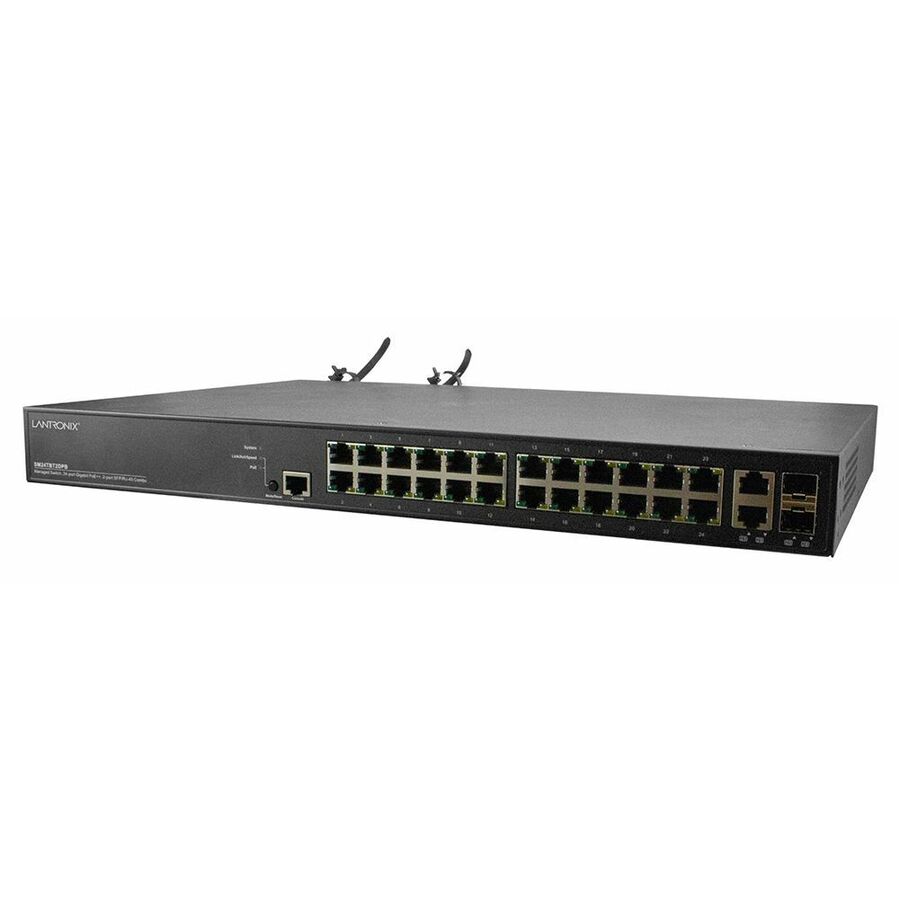

Lantronix SM24TBT2DPB-LA — 24-Port PoE++ Managed Switch
$2,000.91$2,915.00
Ships from and sold by A5 IT
Available on backorder — ships as soon as stock arrives
Free 2-3 Day Shipping — no minimumShips as soon as stock arrives. We'll confirm the lead time before your card is charged.
New, with full manufacturer warranty
Key Features
- 24 10/100/1000Mbps copper ports with IEEE 802.3bt PoE++ capability
- 2 100/1000Mbps dual speed SFP/RJ-45 combo ports
- 52 Gbps switching capacity for Layer 2 managed switching
- 90 Watts per port under IEEE 802.3bt PoE++
- Percepxion integration for device life cycle management, enterprise application integration and data analytics
- DMS graphical monitoring with Topology view, Floor view and Map view
- Included single PS-ACDC-1200 power supply with 19” rack mount brackets, Saf-D adapter cables and Latin America power cord

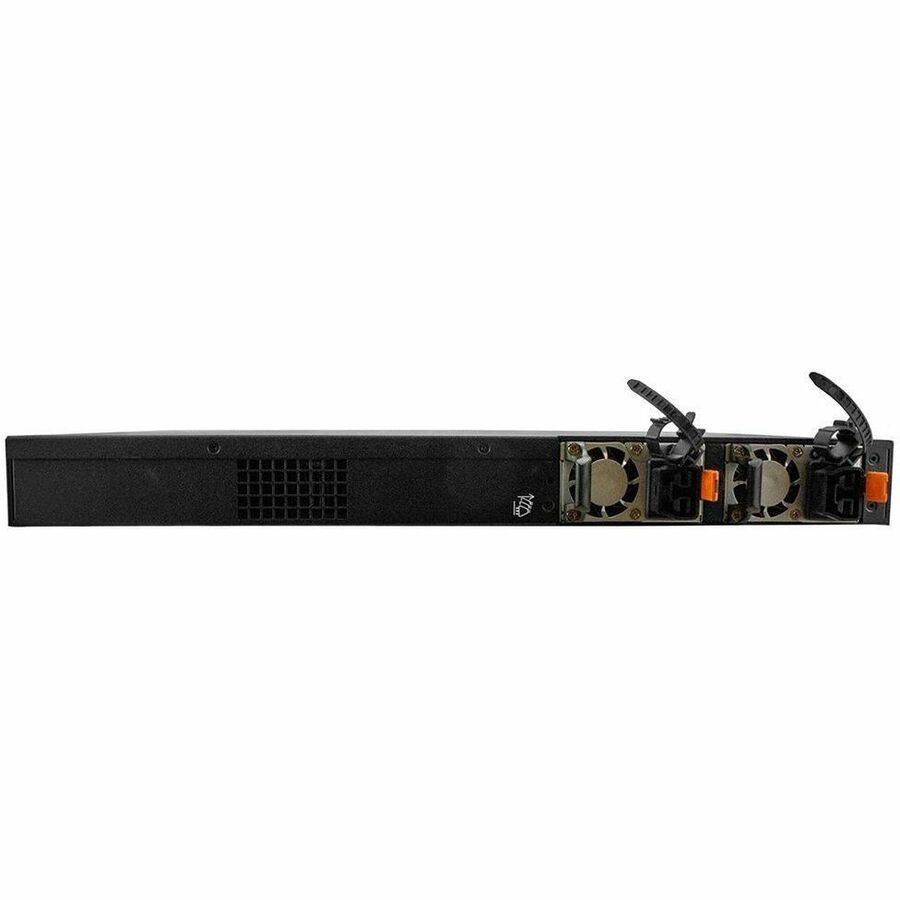

- Hot-swappable dual power supply modules
The Lantronix SM24TBT2DPB-LA is a high-performance Layer 2 managed switch with 52 Gbps switching capacity. It provides (24) 10/100/1000Mbps copper ports with IEEE 802.3bt PoE++ capability and (2) additional 100/1000Mbps dual speed SFP/RJ-45 combo ports. The SM24TBT2DPB complies with IEEE 802.3bt PoE++ and supplies up to 90 Watts per port. This LA configuration includes 19” rack mount brackets, (1) PS-ACDC-1200, (1) Saf-D adapter cables and a Latin America power cord. The switch comes integrated with the Lantronix cloud based Percepxion™ software platform for device life cycle management, enterprise application integration and data analytics. DMS is accessible by Percepxion or the local web manager and provides graphical network topology, floor map creator, device map view, traffic monitoring and network diagnostics for troubleshooting.
Ideal For
- IP surveillance networks using PoE++ ports
- Wireless Access Point applications
- PoE device deployments that use scheduling, Auto Power Reset, Always on PoE or Ultra-fast PoE
- Network monitoring through Percepxion or the local web manager
Specifications
| Weight | SM24TBT2DPB (single power supply) = 11.3 lbs [5.12 kg] |
| Humidity | 10% to 90% (non-condensing) |
| Dimensions | 17.4” [442 mm] x 11.8” [300 mm] x 1.73” [44 mm] |
| Management | Web Management, SNMP V1/V2c/V3, Telnet, CLI |
| Combo Ports | (2) 100/1000 SFP/RJ-45 combo ports |
| RJ-45 Ports | (24) 10/100/1000 RJ-45 ports |
| Console Port | (1) RJ console port |
| Certifications | FCC Class A, CE, UL62368-1 |
| PoE++ Compliance | Compliant with IEEE 802.3bt PoE++; Compliant with IEEE 802.3at PoE+; Compliant with IEEE 802.3af PoE |
| Included Cables | (1) Saf-D adapter cables |
| Included Mounting | 19” rack mount brackets |
| Mac Address Table | 8K MAC address table |
| Switching Capacity | 52 Gbps |
| Included Power Cord | Latin America power cord |
| PoE++ Output Per Port | Max 90 Watts output per port |
| Graphical Monitoring | Topology view, Floor view, Map view |
| Included Power Supply | (1) PS-ACDC-1200 |
| Operating Temperature | 0°C to +40°C |
| Power Input AC Low-line | 100 - 120VAC |
| Power Input AC High Line | 200 - 277VAC |
| Power Input Hvdc Low-line | 192 - 254VDC |
| Power Input Hvdc High-line | 306-334VDC |
| Power Consumption Without PoE++ | 79 Watts with dual AC power modules; 52 Watts with single AC power module |
| Power-over-ethernet AC Low-line | 900W (single PS), 1,800W (dual PS) |
| Power-over-ethernet AC High-line | 1,080W (single PS), 2,160W (dual PS) |
| Power-over-ethernet Hvdc Low-line | 900W (single PS), 1,800W (dual PS) |
| Power-over-ethernet Hvdc High-line | 1,080W (single PS), 2,160W (dual PS) |
Documentation
Frequently Asked Questions
What is included with SM24TBT2DPB-LA?▾
This SKU includes 19” rack mount brackets, (1) PS-ACDC-1200, (1) Saf-D adapter cables and a Latin America power cord.
How much PoE power does this switch support per port?▾
It supplies up to 90 Watts per port and is compliant with IEEE 802.3bt PoE++, IEEE 802.3at PoE+ and IEEE 802.3af PoE.
How can the switch be managed and monitored?▾
The switch includes DMS, accessible by Percepxion or the local web manager, with Topology view, Floor view, Map view, traffic monitoring and network diagnostics.
What operating environment is specified?▾
The listed operating range is 0°C to +40°C with 10% to 90% humidity, non-condensing.
