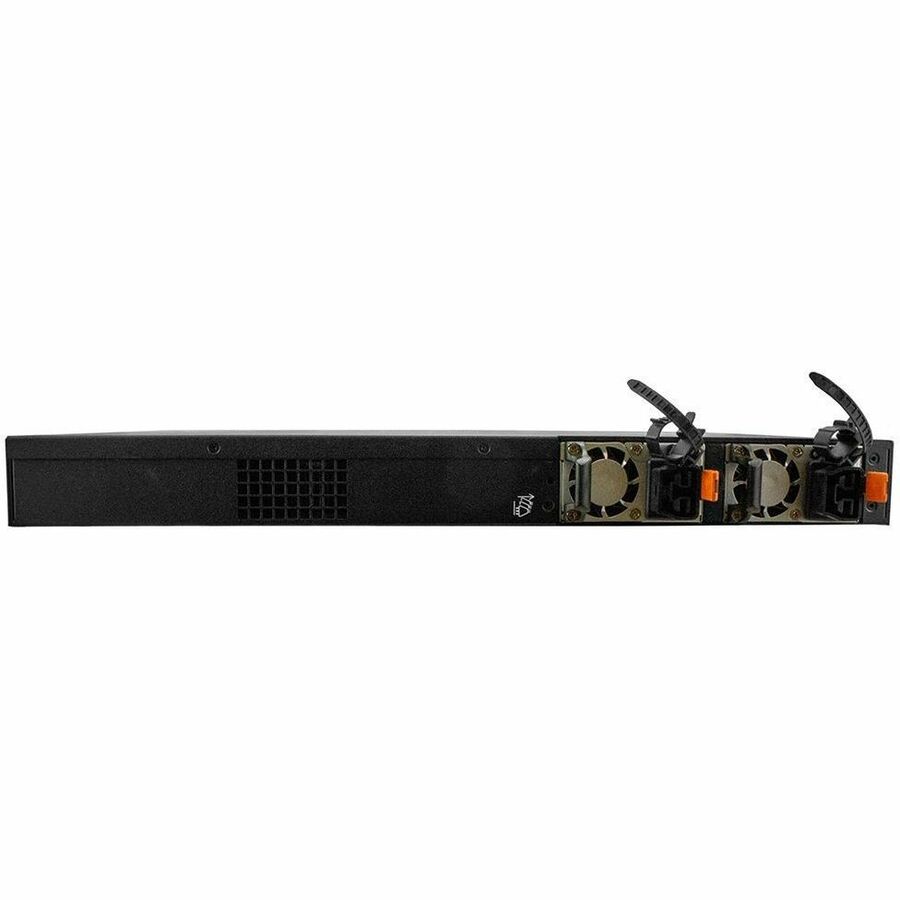

Lantronix SM24TBT2DPB 24-port managed PoE++ switch with 2 SFP/RJ-45 combo ports

Lantronix SM24TBT2DPB-2XPS-SA — Managed PoE++ Switch

Lantronix|

MPN: SM24TBT2DPB-2XPS-SA

|

UPC: 783384254770

Available on Backorder
$2,620.14$3,903.90

Ships from and sold by A5 IT

Available on backorder — ships as soon as stock arrives

Request for QuoteCall 224-312-2244 for Sales
Free 2-3 Day Shipping — no minimumShips as soon as stock arrives. We'll confirm the lead time before your card is charged.
New, with full manufacturer warranty

Key Features

  • 24 10/100/1000Mbps copper ports with IEEE 802.3bt PoE++ capability
  • 2 100/1000Mbps dual speed SFP/RJ-45 combo ports
  • 52 Gbps switching capacity
  • 90 Watts output per port
  • Dual hot-swappable PS-ACDC-1200 power supplies included
  • Percepxion integration for device life cycle management, enterprise application integration and data analytics
  • DMS graphical monitoring with topology view, floor view and map view
  • Hot-swappable dual power supply modules
Lantronix SM24TBT2DPB-2XPS-SA is a high-performance Layer 2 managed switch with 52 Gbps switching capacity. It provides (24) 10/100/1000Mbps copper ports with IEEE 802.3bt PoE++ capability and (2) 100/1000Mbps dual speed SFP/RJ-45 combo ports. The switch supplies up to 90 Watts per port. This SKU includes dual hot-swappable PS-ACDC-1200 power supplies, allowing full PoE++ output on all 24 ports. SM24TBT2DPB switches come integrated with Lantronix’s Percepxion cloud based IoT edge solutions platform for device life cycle management, enterprise application integration and data analytics. DMS is accessible by Percepxion or the local web manager and includes topology view, floor view, map view, traffic monitoring and network diagnostics.

Ideal For

  • IP surveillance networks using PoE++ endpoints
  • Wireless Access Point applications
  • Deployments requiring full PoE++ output on all 24 ports
  • Networks managed through Percepxion or the local web manager with DMS topology, floor and map views

Specifications

SeriesSM24TBT2DPB
SecuritySSH v1/SSH v2/SSL
Backplane52 Gbps
ProtocolsCSMA/CD
ManagementWeb Management, SNMP V1/V2c/V3, Telnet, CLI
AC Low-line100 - 120VAC
Combo Ports(2) 100/1000 SFP/RJ-45 combo ports
Jumbo FrameUp to 9K bytes
RJ-45 Ports(24) 10/100/1000 RJ-45 ports
AC High Line200 - 277VAC
Console Port(1) RJ console port
PoE++ StandardIEEE 802.3af PoE
Hvdc Low-line192 - 254VDC
PoE++ StandardIEEE 802.3at PoE+
AuthenticationRADIUS, TACACS+
Hvdc High-line306-334VDC
PoE++ StandardIEEE 802.3bt PoE++
Power SuppliesDual Hot-Swappable Power Supplies
Switching LayerLayer 2
TroubleshootingNetwork diagnostic, protection mechanism, performance and link management
Mac Address Table8K MAC address table
Power Supply ModelPS-ACDC-1200
Traffic MonitoringTraffic Monitoring
PoE++ Output Per PortMax 90 Watts output per port
Graphical MonitoringTopology view, Floor view, Map view
PoE++ Budget AC Low-line1,800W (dual PS)
PoE++ Budget AC High Line2,160W (dual PS)
PoE++ Budget Hvdc Low-line1,800W (dual PS)
PoE++ Budget Hvdc High-line2,160W (dual PS)
Power Consumption Without PoE++79 Watts with dual AC power modules

Documentation

Manufacturer Brochure

User Manual

Product Brief

SM24TBT2DPB Product Brief (A4)

PoE Switches & Media Converters Matrix

ITPro Today News Coverage – Tech and Ingenuity Supercharge a Sustainable Hotel

SM24TBT2DPB Quick Start Guide Rev B

SM24TBT2DPB Install Guide Rev E

SM24TBT2DPx Web User Guide Rev K

Frequently Asked Questions

Does SM24TBT2DPB-2XPS-SA include power supplies?▾

Yes. This SKU includes (2) PS-ACDC-1200 power supplies, (2) Saf-D adapter cables, 19” rack mount brackets and South Africa power cords.

How many network ports does this switch provide?▾

It provides (24) 10/100/1000Mbps copper ports with IEEE 802.3bt PoE++ capability and (2) 100/1000Mbps dual speed SFP/RJ-45 combo ports.

What PoE++ output does the switch support?▾

The switch supplies up to 90 Watts per port. With dual hot-swappable PS-ACDC-1200 power supplies, it can provide full PoE++ output on all 24 ports.

How is the switch managed?▾

It is integrated with Lantronix’s Percepxion cloud based IoT edge solutions platform. DMS is accessible by Percepxion or the local web manager.
