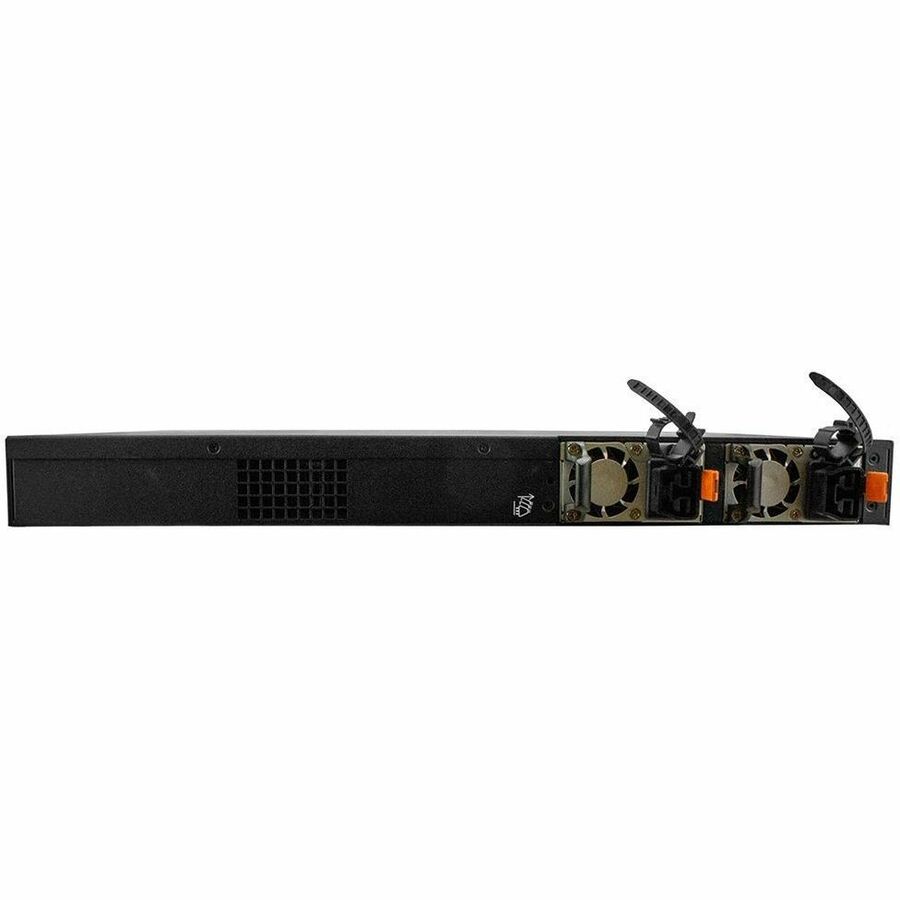

Lantronix SM24TBT2DPB-2XPS-EU — 24-Port Gigabit PoE++ Switch
$2,620.14$3,903.90
Ships from and sold by A5 IT
Available on backorder — ships as soon as stock arrives
Free 2-3 Day Shipping — no minimumShips as soon as stock arrives. We'll confirm the lead time before your card is charged.
New, with full manufacturer warranty
Key Features
- 24 10/100/1000Base-T PoE++ ports plus (2) 100/1000Base-X SFP/RJ-45 combo ports
- 90 Watts output per port with IEEE 802.3bt PoE++ compliance
- Dual hot-swappable PS-ACDC-1200 power supplies with power redundancy and failover
- 52 Gbps switching capacity for Layer 2 managed switching
- Percepxion integration for device life cycle management, enterprise application integration, and data analytics
- DMS graphical monitoring with topology view, floor view, and map view
- Security support for SSH v1/SSH v2/SSL, RADIUS, and TACACS+
- Hot-swappable dual power supply modules
Lantronix SM24TBT2DPB-2XPS-EU is a Layer 2 managed PoE++ switch with (24) 10/100/1000Mbps copper ports and (2) additional 100/1000Mbps dual speed SFP/RJ-45 combo ports. It provides 52 Gbps switching capacity and supplies up to 90 Watts per port. This SKU includes (2) PS-ACDC-1200 dual hot-swappable power supplies, (2) Saf-D adapter cables, 19” rack mount brackets, and European power cords. With the dual power supplies, the switch can provide full PoE++ output on all 24 ports. The switch comes integrated with Lantronix Percepxion, providing device life cycle management, enterprise application integration, and data analytics through a single pane of glass. DMS is accessible by Percepxion or the local web manager and provides topology view, floor view, map view, traffic monitoring, and network diagnostics for troubleshooting.
Ideal For
- IP surveillance networks using PoE++ access ports
- Wireless Access Point deployments
- Networks that require up to 90 Watts per port across 24 PoE++ ports
- DMS monitoring with topology view, floor view, map view, traffic monitoring, and network diagnostics
Specifications
| Humidity | 10% to 90% (non-condensing) |
| Protocols | CSMA/CD |
| Dimensions | 17.4” [442 mm] x 11.8” [300 mm] x 1.73” [44 mm] |
| Power Cords | European power cords |
| Power Input | Dual Hot-Swappable Power Supplies; Power Redundancy, Failover: PS-ACDC-1200 |
| RJ-45 Ports | (24) 10/100/1000 RJ-45 ports |
| Console Port | (1) RJ console port |
| Certifications | FCC Class A, CE, UL62368-1 |
| PoE++ Compliance | Compliant with IEEE 802.3bt PoE++; Compliant with IEEE 802.3af PoE |
| PoE++ Compliance | Compliant with IEEE 802.3at PoE+ |
| Limited Warranty | 5 Year Limited Warranty |
| AC Low-line Input | 100 - 120VAC |
| Mac Address Table | 8K MAC address table |
| AC High Line Input | 200 - 277VAC |
| Switching Capacity | 52 Gbps |
| Hvdc Low-line Input | 192 - 254VDC |
| PoE++ Output Per Port | Max 90 Watts output per port |
| Rack Mount Brackets | 19” rack mount brackets |
| Hvdc High-line Input | 306-334VDC |
| Saf-d Adapter Cables | (2) Saf-D adapter cables |
| Operating Temperature | 0°C to +40°C |
| SFP+ RJ-45 Combo Ports | (2) 100/1000 SFP/RJ-45 combo ports |
| PoE++ Budget AC Low-line | 900W (single PS), 1,800W (dual PS) |
| PoE++ Budget AC High-line | 1,080W (single PS), 2,160W (dual PS) |
| Power Supplies Included | (2) PS-ACDC-1200 |
| PoE++ Budget Hvdc Low-line | 900W (single PS), 1,800W (dual PS) |
| PoE++ Budget Hvdc High-line | 1,080W (single PS), 2,160W (dual PS) |
| Weight With Dual Power Supplies | SM24TBT2DPB-2XPS (dual power supplies) = 13.3 lbs [6.03 kg] |
| Power Consumption With Dual AC Power Modules | 79 Watts with dual AC power modules |
| Power Consumption With Single AC Power Module | 52 Watts with single AC power module |
Documentation
Frequently Asked Questions
What is included with SM24TBT2DPB-2XPS-EU?▾
It includes 19” rack mount brackets, (2) PS-ACDC-1200 power supplies, (2) Saf-D adapter cables, and European power cords.
How much PoE power does it support?▾
The switch supplies up to 90 Watts per port and can provide full PoE++ output on all 24 ports when equipped with the dual hot-swappable PS-ACDC-1200 power supplies.
How is the switch managed?▾
DMS is accessible by Percepxion or the local web manager. Software management features include Web Management, SNMP V1/V2c/V3, Telnet, and CLI.
What operating environment is listed for this switch?▾
The operating range is 0°C to +40°C with 10% to 90% humidity, non-condensing.
