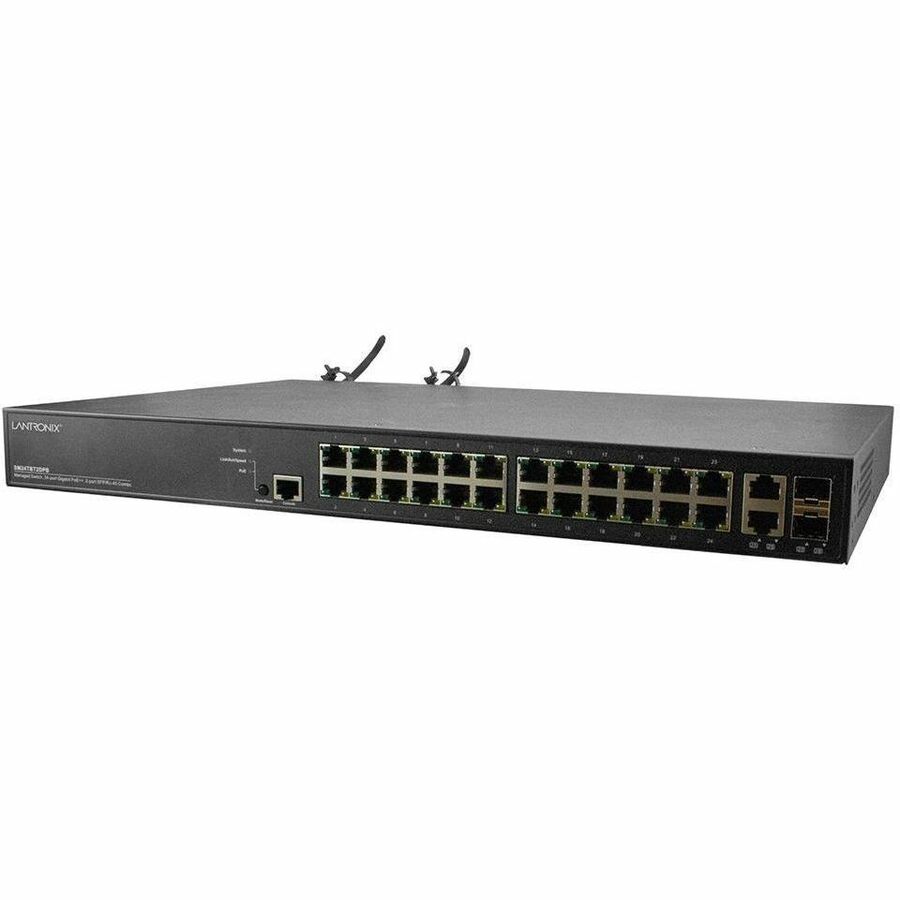

Lantronix SM24TBT2DPB 24-Port Managed Gigabit PoE++ Switch
The SM24TBT2DPB is a 19-inch rack-mount Layer 2 managed switch with 24 Gigabit IEEE 802.3bt PoE++ ports and two SFP/RJ-45 combo uplinks, built to power and manage high-wattage devices from a single chassis.
From $2,496.00
Overview
About the Lantronix SM24TBT2DPB
The SM24TBT2DPB, part of the family Lantronix documents as SM24TBT2DPx, puts 24 10/100/1000 copper ports, each capable of IEEE 802.3bt PoE++ at up to 90 W, behind a 52 Gbps switching fabric. Two 100/1000 dual-speed SFP/RJ-45 combo ports handle uplinks over fiber or copper. It is built for loads that outgrow PoE+ budgets, such as PTZ cameras, multi-radio wireless access points and PoE lighting.
Power is modular and hot-swappable. With one PS-ACDC-1200, the PoE budget is 900 W on AC low-line or 1,080 W on high-line; with two, it reaches 1,800 W or 2,160 W, enough for full PoE++ on all 24 ports. The PS-ACDC-1200 also accepts 192 to 334 VDC HVDC input. The -920 builds use the PS-AC-920 for applications that mix PoE+ and PoE++ ports rather than running all 24 at 90 W.
Management covers web, CLI, Telnet and SNMP v1/v2c/v3, with RADIUS and TACACS+ authentication, L2/L3/L4 ACLs, IGMP snooping, MSTP/RSTP, Rapid Ring and up to 4k VLANs with QinQ. The built-in Device Management System draws topology, floor and map views, and the switch integrates with the Lantronix Percepxion cloud platform.
Key capabilities
- 90 W on every port
- All 24 copper ports comply with IEEE 802.3bt PoE++, and dual PS-ACDC-1200 supplies deliver full 90 W output across all 24 ports simultaneously.

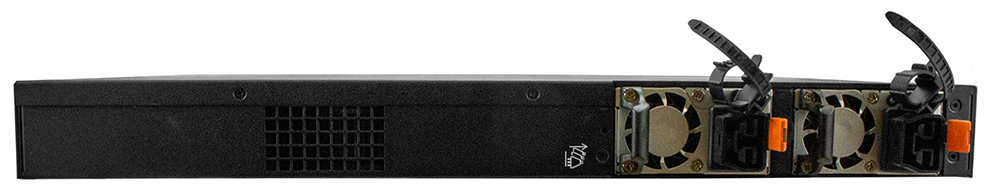

- Hot-swappable redundant power
- Two modular power supply bays support redundancy and failover. Supplies can be replaced without powering down the switch, keeping cameras and access points online.
- AC or HVDC input
- The PS-ACDC-1200 accepts 100 to 120 VAC, 200 to 277 VAC, and HVDC low-line 192 to 254 VDC or high-line 306 to 334 VDC.
- PoE control features
- PoE scheduling, Always on PoE, Ultra-fast PoE, Auto Power Reset and LLDP-MED configuration let you control when and how each powered device receives power.
- Built-in device mapping
- The Device Management System, reachable through the local web manager or Percepxion, provides topology, floor and map views, traffic monitoring and network diagnostics.
- Layer 2 security stack
- RADIUS and TACACS+ authentication, SSH and SSL, MAC and IP ACLs, IP Source Guard and port security protect the access layer.
How to choose the right SM24TBT2DPB part number
All SM24TBT2DPB switches share the same 24+2 port hardware; part numbers differ by power supply and power cord. Base models such as SM24TBT2DPB-NA ship with one PS-ACDC-1200. SM24TBT2DPB-2XPS-NA ships with two for full 90 W on all ports. SM24TBT2DPB-920-NA uses one PS-AC-920 for mixed PoE+ and PoE++ loads. The suffix sets the cord: NA, LA, EU, UK, SA, JP, OZ or BR. The -DE builds omit the Saf-D adapter cable and power cord for Digital Electricity installations. PS-AC-920 and PS-ACDC-1200 supplies are also sold separately as secondary modules.
Configure & order
Find your SM24TBT2DPB part number
Every orderable SM24TBT2DPB configuration, filtered by the specs that actually differ between them. Pick what you need on the left and the matching part numbers appear here.
SM24TBT2DPB-DE
$2,915.00
Ships on backorder
SM24TBT2DPB-NA
$2,915.00
1 in stock
SM24TBT2DPB-LA
$2,915.00
Ships on backorder
SM24TBT2DPB-EU
$2,915.00
Ships on backorder
SM24TBT2DPB-UK
$2,915.00
Ships on backorder
SM24TBT2DPB-SA
$2,915.00
Ships on backorder
SM24TBT2DPB-JP
$2,915.00
Ships on backorder
SM24TBT2DPB-OZ
$2,915.00
Ships on backorder
SM24TBT2DPB-BR
$2,915.00
Ships on backorder
SM24TBT2DPB-920-NA
$2,496.00
Ships on backorder
SM24TBT2DPB-920-LA
$2,496.00
Ships on backorder
SM24TBT2DPB-2XPS-DE
$3,690.50
Ships on backorder
SM24TBT2DPB-2XPS-NA
$3,903.90
Ships on backorder
SM24TBT2DPB-2XPS-LA
$3,903.90
Ships on backorder
SM24TBT2DPB-2XPS-EU
$3,903.90
Ships on backorder
SM24TBT2DPB-2XPS-UK
$3,903.90
Ships on backorder
SM24TBT2DPB-2XPS-SA
$3,903.90
Ships on backorder
SM24TBT2DPB-2XPS-JP
$3,903.90
Ships on backorder
SM24TBT2DPB-2XPS-OZ
$3,903.90
Ships on backorder
SM24TBT2DPB-2XPS-BR
$3,903.90
Ships on backorder
Complete the deployment
Accessories, renewals & add-ons
Everything sold for the SM24TBT2DPB, organized by what it does — power— each with why you'd add it.
Power
17 items
PS-AC-920
PS-AC-920-NA
920 W secondary AC modular power supply listed for the SM24TBT2DPB series. It includes (1) Saf-D adapter cable and a North America power cord.
$588.30
Ships on backorder
PS-AC-920
PS-AC-920-LA
920 W secondary AC modular power supply listed for the SM24TBT2DPB series. It includes (1) Saf-D adapter cable and a Latin America power cord.
$588.30
Ships on backorder
PS-AC-920
PS-AC-920-EU
Secondary AC modular power supply with 920 W output power. It includes (1) Saf-D adapter cable and a Europe power cord.
$588.30
Ships on backorder
PS-AC-920
PS-AC-920-UK
920 W secondary AC modular power supply listed for the SM24TBT2DPB series. It includes (1) Saf-D adapter cable and a United Kingdom power cord.
$588.30
Ships on backorder
PS-AC-920
PS-AC-920-SA
Secondary AC modular power supply with 920 W output power. It includes (1) Saf-D adapter cable and a South America power cord.
$588.30
Ships on backorder
PS-AC-920
PS-AC-920-JP
Secondary AC modular power supply with 920 W output. It includes (1) Saf-D adapter cable and a Japan power cord.
$588.30
Ships on backorder
PS-AC-920
PS-AC-920-JP
Secondary AC modular power supply with 920 W output. It includes (1) Saf-D adapter cable and a Japan power cord.
$588.30
Ships on backorder
PS-AC-920
PS-AC-920-BR
Secondary AC modular power supply with 920 W output power. It includes (1) Saf-D adapter cable and a Brazil power cord.
$588.30
Ships on backorder
PS-ACDC-1200
PS-ACDC-1200-DE
Secondary AC & DC modular power supply for the SM24TBT2DPB switch.
$824.50
Ships on backorder
PS-ACDC-1200
PS-ACDC-1200-NA
Secondary AC & DC modular power supply for the SM24TBT2DPB. It provides 1080 Watts PoE output max and includes a Saf-D adapter cable and North America power cord.
$874.50
Ships on backorder
PS-ACDC-1200
PS-ACDC-1200-LA
Secondary AC & DC modular power supply for the SM24TBT2DPB switch, with 1080 Watts PoE output max. It includes (1) Saf-D adapter cable and a Latin America power cord.
$874.50
Ships on backorder
PS-ACDC-1200
PS-ACDC-1200-EU
Secondary AC & DC modular power supply for the SM24TBT2DPB switch. It provides 1080 Watts PoE Output Max and includes (1) Saf-D adapter cable and a European power cord.
$874.50
Ships on backorder
PS-ACDC-1200
PS-ACDC-1200-UK
Secondary AC & DC modular power supply for the SM24TBT2DPB. It includes (1) Saf-D adapter cable and a United Kingdom power cord.
$874.50
Ships on backorder
PS-ACDC-1200
PS-ACDC-1200-SA
Secondary AC & DC modular power supply for the SM24TBT2DPB. It provides 1080 Watts PoE Output Max and includes a Saf-D adapter cable and South Africa power cord.
$874.50
Ships on backorder
PS-ACDC-1200
PS-ACDC-1200-JP
Secondary AC & DC modular power supply for SM24TBT2DPB. It provides 1080 W output power and includes (1) Saf-D adapter cable and a Japan power cord.
$874.50
Ships on backorder
PS-ACDC-1200
PS-ACDC-1200-OZ
Secondary AC & DC modular power supply for the SM24TBT2DPB. It provides 1080 Watts PoE output max and includes a Saf-D adapter cable and Australia power cord.
$874.50
Ships on backorder
PS-ACDC-1200
PS-ACDC-1200-BR
Secondary AC & DC modular power supply for the Lantronix SM24TBT2DPB switch. It provides 1080 Watts PoE Output Max and includes a Saf-D adapter cable and Brazil power cord.
$874.50
Ships on backorder
Compatibility taken from the Lantronix part-number tables for the SM24TBT2DPB. Don't see what you need? Request a quote — we can source the full Lantronix catalog.
Where the SM24TBT2DPB is used
- Powering 802.3bt PTZ cameras in IP surveillance systems
- Feeding high-power wireless access points from one closet switch
- PoE lighting and smart-building device networks
- Digital Electricity installations using the -DE configurations
- Milestone XProtect video deployments using the Lantronix plug-in
SM24TBT2DPB datasheets & documentation
- Product BriefPDF
- SM24TBT2DPB Product Brief (A4)PDF
- SM24TBT2DPB Quick Start Guide Rev BPDF
- SM24TBT2DPx Web User Guide Rev KPDF
- PoE Switches & Media Converters MatrixPDF

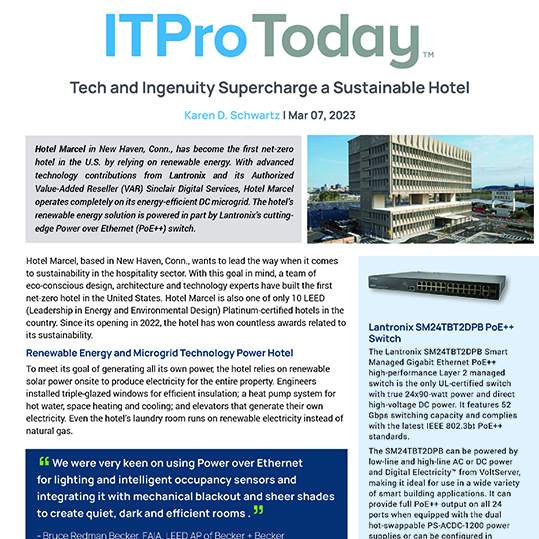

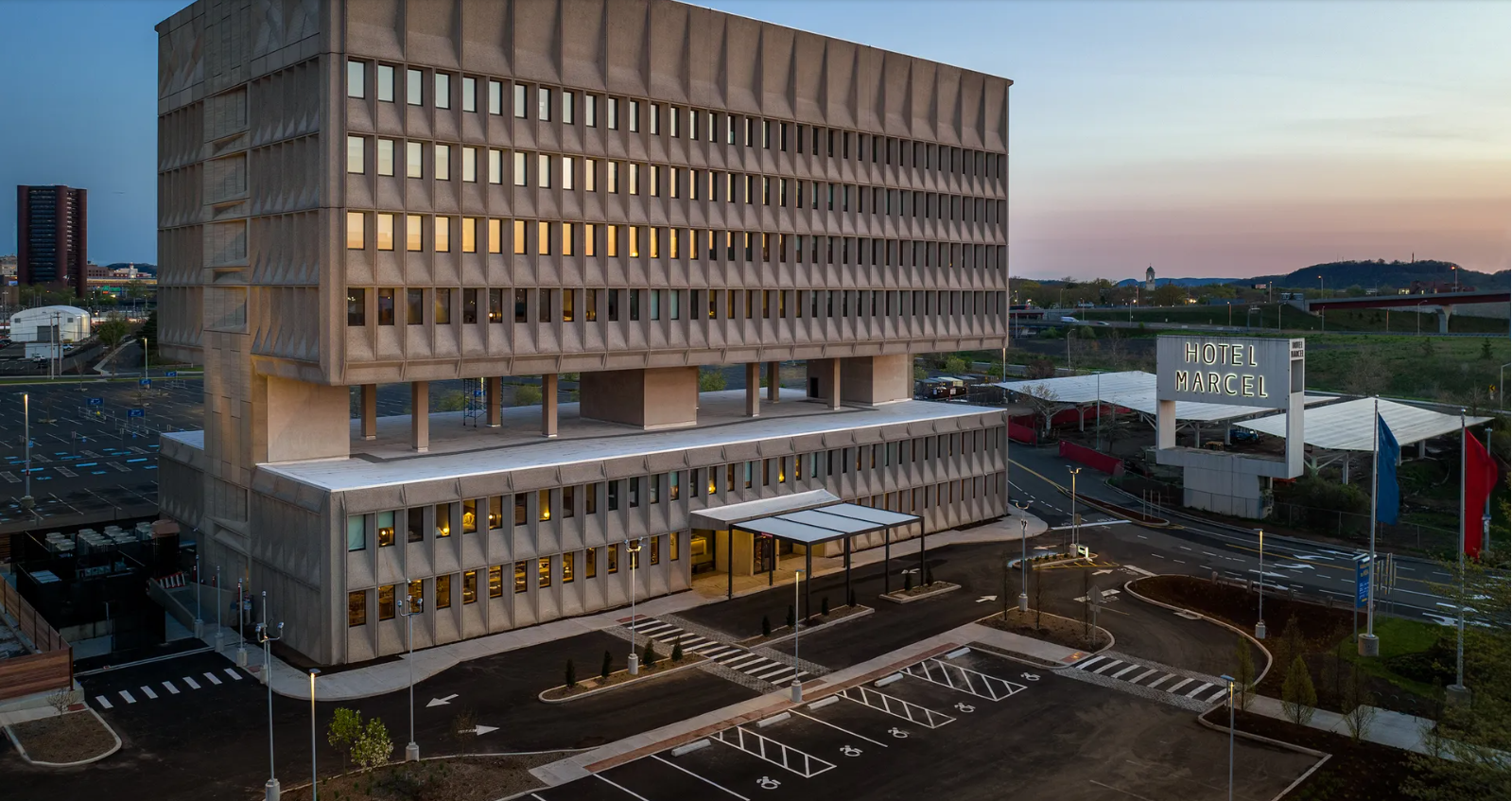

- ITPro Today News Coverage – Tech and Ingenuity Supercharge a Sustainable HotelPDF
- SM24TBT2DPB Install Guide Rev EPDF
- SM24TBT2DPx CLI Reference Guide Rev KPDF
SM24TBT2DPB FAQ
How much PoE power does the SM24TBT2DPB provide?
Each port delivers up to 90 W. With one PS-ACDC-1200 the total budget is 900 W on AC low-line or 1,080 W on high-line. With two supplies it is 1,800 W or 2,160 W, enough for full PoE++ on all 24 ports.
What is the difference between SM24TBT2DPB and SM24TBT2DPB-920?
Both have identical port hardware. The standard model ships with the PS-ACDC-1200 supply, which also accepts HVDC input. The -920 version ships with the AC-only PS-AC-920 and is intended for applications that need a balance of PoE+ and PoE++ ports rather than 90 W on all 24.
What do the -DE part numbers mean on the SM24TBT2DPB?
The -DE configurations are for Digital Electricity applications. They include the switch, rack-mount brackets and PS-ACDC-1200 supply or supplies, but no Saf-D adapter cable or power cord.
What is the SM24TBT2DPB operating temperature?
The switch is rated for 0°C to +40°C operation at 10% to 90% non-condensing humidity. It carries FCC Class A, CE and UL62368-1 certifications and is intended for rack or closet installation.
Can the SM24TBT2DPB be managed from the cloud?
Yes. The switch integrates with the Lantronix Percepxion cloud platform for device lifecycle management. It can also be managed locally through the web interface, CLI, Telnet or SNMP v1/v2c/v3.
