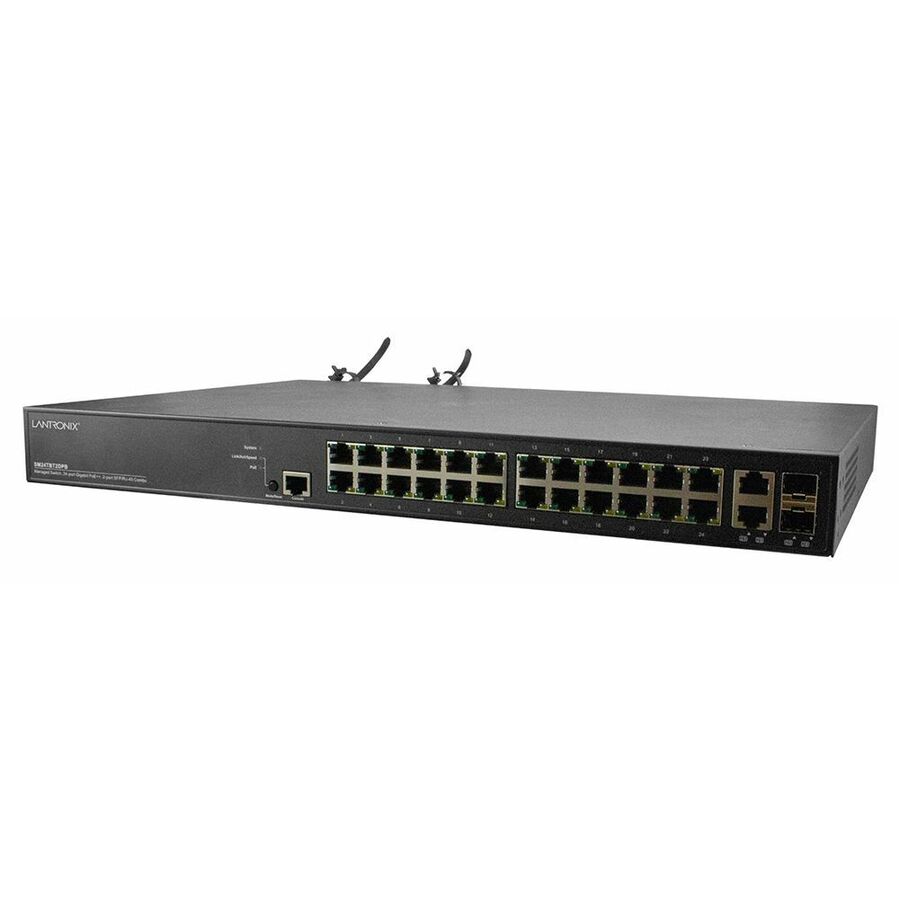

Lantronix SM24TBT2DPB-SA — 24-Port PoE++ Managed Switch
Ships from and sold by A5 IT
Available on backorder — ships as soon as stock arrives
Key Features
- 24 10/100/1000Base-T ports with IEEE 802.3bt PoE++ capability
- 2 100/1000Base-X SFP/RJ-45 combo ports
- 90 Watts output per port maximum
- 52 Gbps switching capacity

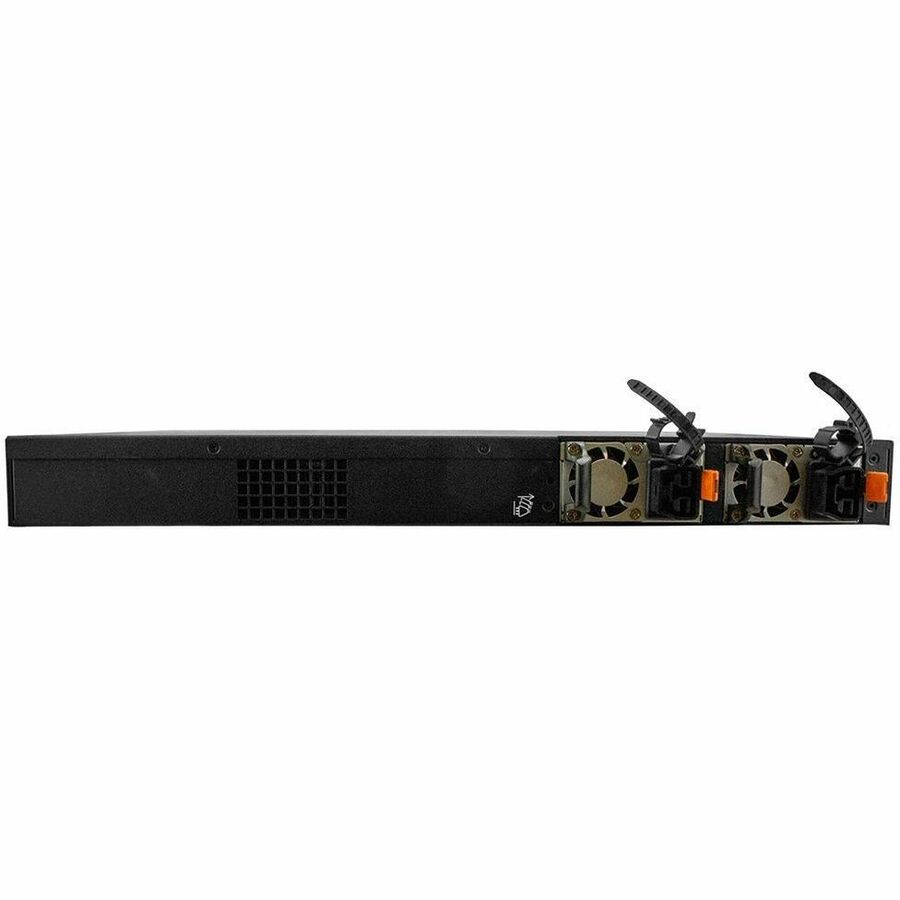

- Dual hot-swappable power supply modules with power redundancy and failover
- Percepxion integration for device life cycle management, enterprise application integration and data analytics
- DMS graphical monitoring with topology view, floor view and map view
- Hot-swappable dual power supply modules
Ideal For
- IP surveillance networks using PoE++ copper ports
- Wireless Access Point applications
- Percepxion-managed networks needing device life cycle management, enterprise application integration and data analytics
- DMS workflows using topology view, floor view, map view, traffic monitoring and network diagnostics
Specifications
| Weight | 11.3 lbs [5.12 kg] |
| Humidity | 10% to 90% (non-condensing) |
| Security | Supports SSH v1/SSH v2/SSL |
| Backplane | 52 Gbps |
| Protocols | CSMA/CD |
| Dimensions | 17.4” [442 mm] x 11.8” [300 mm] x 1.73” [44 mm] |
| Management | Web Management, SNMP V1/V2c/V3, Telnet, CLI |
| Combo Ports | (2) 100/1000 SFP/RJ-45 combo ports |
| Jumbo Frame | Up to 9K bytes |
| Switch Type | Layer 2 managed switch |
| Console Port | (1) RJ console port |
| Copper Ports | (24) 10/100/1000 RJ-45 ports |
| PoE++ Standards | IEEE 802.3bt; IEEE 802.3at; IEEE 802.3af |
| Authentication | RADIUS, TACACS+ |
| Certifications | FCC Class A, CE, UL62368-1 |
| Limited Warranty | 5 Year |
| AC Low-line Input | 100 - 120VAC |
| Mac Address Table | 8K |
| AC High Line Input | 200 - 277VAC |
| Hvdc Low-line Input | 192 - 254VDC |
| PoE++ Output Per Port | Max 90 Watts output per port |
| Hvdc High-line Input | 306-334VDC |
| Power Supply Support | Dual Hot-Swappable Power Supplies |
| Operating Temperature | 0°C to +40°C |
| Power Supply Included | (1) PS-ACDC-1200 |
| Power Consumption Without PoE++ | 52 Watts with single AC power module |
| PoE++ Budget AC Low-line Single Ps | 900W |
| PoE++ Budget AC High Line Single Ps | 1,080W |
Documentation
Frequently Asked Questions
What is included with SM24TBT2DPB-SA?▾
This SKU includes 19” rack mount brackets, (1) PS-ACDC-1200, (1) Saf-D adapter cables and a South Africa power cord.
How many PoE++ ports does this switch provide?▾
It provides (24) 10/100/1000Mbps copper ports with IEEE 802.3bt PoE++ capability and supplies up to 90 Watts per port.
Does the SM24TBT2DPB integrate with Percepxion?▾
Yes. The switch is integrated with Lantronix’s Percepxion cloud based IoT edge solutions platform for device life cycle management, enterprise application integration and data analytics.
Does this SKU include dual power supplies?▾
The switch supports dual hot-swappable power supply modules for power redundancy and failover. This SKU includes (1) PS-ACDC-1200.
