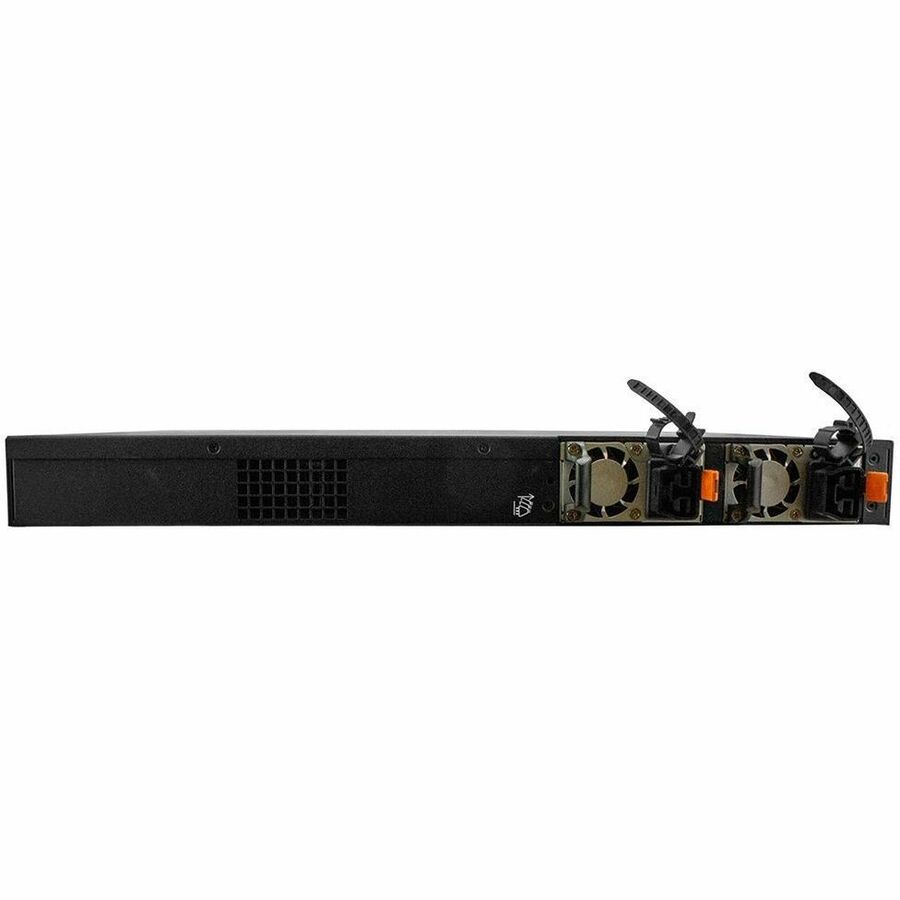

Lantronix SM24TBT2DPB-DE — 24-Port PoE++ Managed Switch
Ships from and sold by A5 IT
Available on backorder — ships as soon as stock arrives
Key Features
- 24 10/100/1000 RJ-45 ports with IEEE 802.3bt PoE++ capability
- 2 100/1000 SFP/RJ-45 combo ports
- 52 Gbps switching capacity
- 90 Watts per port PoE++ output
- Percepxion integration for device life cycle management, enterprise application integration and data analytics
- DMS graphical monitoring with Topology view, Floor view and Map view
- Single PS-ACDC-1200 included with 19” rack mount brackets
- Hot-swappable dual power supply modules
Ideal For
- IP surveillance networks
- Wireless Access Point applications
- Digital Electricity applications
- Managed PoE++ networks that need DMS topology, floor and map views
Specifications
| Depth | 11.8” [300 mm] |
| Width | 17.4” [442 mm] |
| Height | 1.73” [44 mm] |
| Weight | SM24TBT2DPB (single power supply) = 11.3 lbs [5.12 kg] |
| Humidity | 10% to 90% (non-condensing) |
| Warranty | 5 Year Limited Warranty |
| Backplane | 52 Gbps |
| Management | Web Management, SNMP V1/V2c/V3, Telnet, CLI |
| Combo Ports | (2) 100/1000 SFP/RJ-45 combo ports |
| Console Port | (1) RJ console port |
| Copper Ports | (24) 10/100/1000 RJ-45 ports |
| PoE++ Standard | IEEE 802.3bt PoE++; IEEE 802.3at PoE+; IEEE 802.3af PoE |
| Certifications | FCC Class A, CE, UL62368-1 |
| Mac Address Table | 8K MAC address table |
| PoE++ Per-port Output | Max 90 Watts output per port |
| Operating Temperature | 0°C to +40°C |
| Power Supply Included | (1) PS-ACDC-1200 |
| Power Input AC Low-line | 100 - 120VAC |
| Power Input AC High Line | 200 - 277VAC |
| Power Input Hvdc Low-line | 192 - 254VDC |
| Power Input Hvdc High-line | 306-334VDC |
| PoE++ Budget AC Low-line Single Ps | 900W (single PS) |
| PoE++ Budget AC High-line Single Ps | 1,080W (single PS) |
| PoE++ Budget Hvdc Low-line Single Ps | 900W (single PS) |
| PoE++ Budget Hvdc High-line Single Ps | 1,080W (single PS) |
| Power Consumption Without PoE++ Single AC Power Module | 52 Watts with single AC power module |
Documentation
Frequently Asked Questions
How many ports does the SM24TBT2DPB-DE provide?▾
It provides (24) 10/100/1000 RJ-45 ports with IEEE 802.3bt PoE++ capability and (2) 100/1000 SFP/RJ-45 combo ports.
What is included with this DE SKU?▾
The SM24TBT2DPB-DE includes 19” rack mount brackets and (1) PS-ACDC-1200. It does not include a Saf-D adapter cable or power cord.
What PoE output does this switch support?▾
It supplies up to 90 Watts per port. With a single PS, the listed PoE budget is 900W at AC low-line and 1,080W at AC high-line.
How is the switch managed and monitored?▾
DMS is accessible by Percepxion or the local web manager and includes Topology view, Floor view, Map view, traffic monitoring and network diagnostics.
Support & warranty plans
Lantronix LEVEL coverage for this part. Add a plan at the time of purchase to lock in the term from the ship date.
- 1-year technical support
SM24TBT2DPB-DE-L1Y1
$262.35 - 3-year technical support
SM24TBT2DPB-DE-L1Y3
$765.19 - 5-year technical support
SM24TBT2DPB-DE-L1Y5
$1,238.88 - 1-year extended warranty & technical support
SM24TBT2DPB-DE-L2Y1
$378.95 - 3-year extended warranty & technical support
SM24TBT2DPB-DE-L2Y3
$1,093.13 - 5-year extended warranty & technical support
SM24TBT2DPB-DE-L2Y5
$1,749.00
