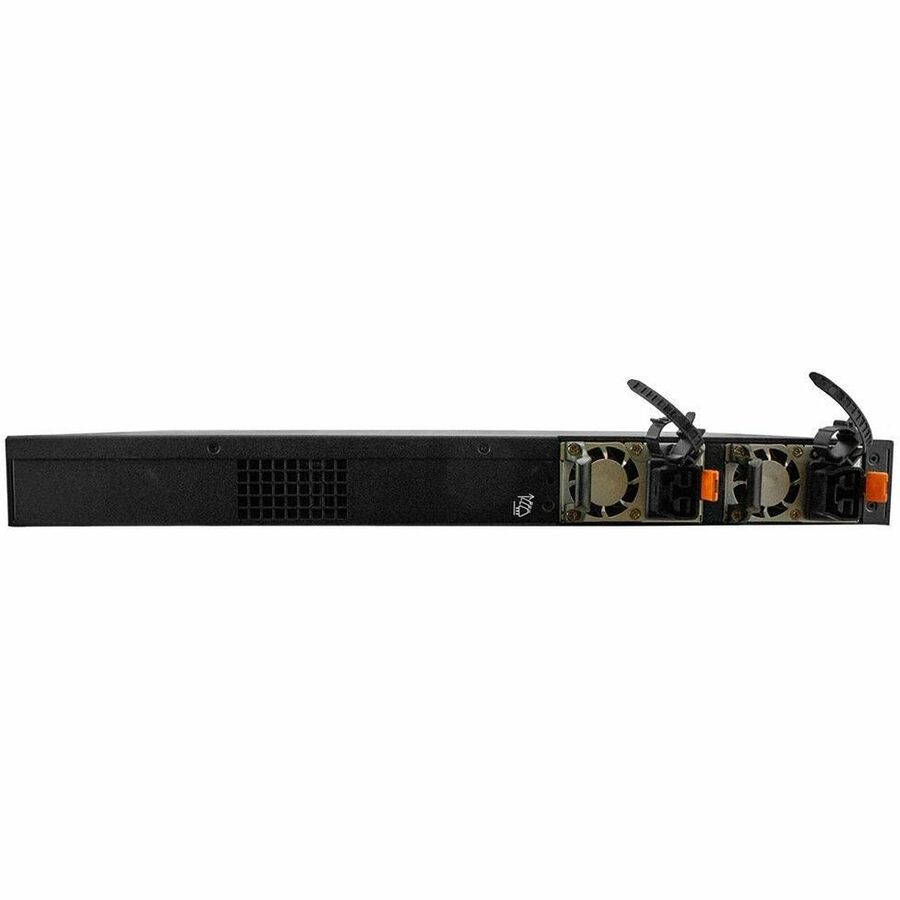

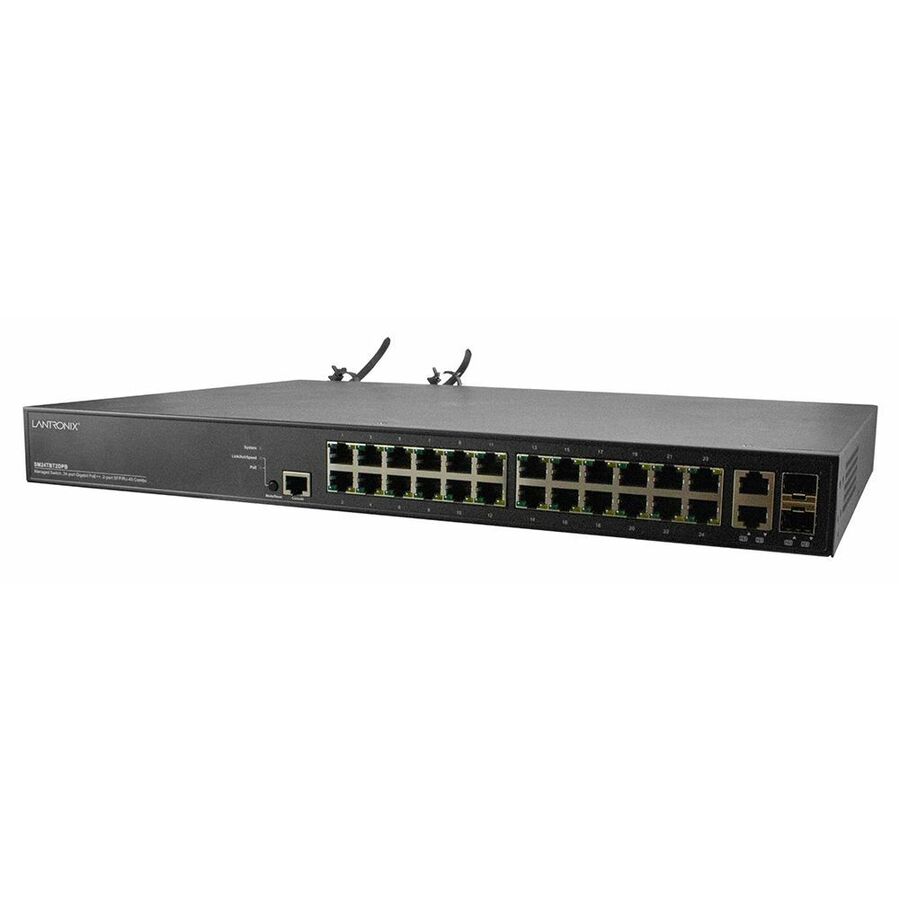

Lantronix SM24TBT2DPB-BR — 24-Port PoE++ Managed Switch
$2,915.00
Ships from and sold by A5 IT
Available on backorder — ships as soon as stock arrives
Free 2-3 Day Shipping within the United StatesShips as soon as stock arrives. We'll confirm the lead time before your card is charged.
New, with full manufacturer warranty
Key Features
- 24 10/100/1000Mbps copper ports with IEEE 802.3bt PoE++ capability
- 2 100/1000Mbps dual speed SFP/RJ-45 combo ports
- 90 Watts per port PoE++ output
- 52 Gbps switching capacity
- Percepxion integration for device life cycle management, enterprise application integration and data analytics
- DMS management with topology view, floor view, map view, traffic monitoring and network diagnostics
- Brazil power cord package with 19” rack mount brackets, (1) PS-ACDC-1200 and (1) Saf-D adapter cables
- Hot-swappable dual power supply modules
Lantronix SM24TBT2DPB-BR is a high-performance Layer 2 managed switch with 52 Gbps switching capacity. It provides (24) 10/100/1000Mbps copper ports with IEEE 802.3bt PoE++ capability and (2) additional 100/1000Mbps dual speed SFP/RJ-45 combo ports. The SM24TBT2DPB complies with IEEE 802.3bt PoE++ and supplies up to 90 Watts per port. PoE features include IEEE 802.1AB LLDP-MED Configuration, PoE Configuration, PoE Scheduling, Auto Power Reset, DHCP per Port, Always on PoE and Ultra-fast PoE. The switch comes integrated with the Lantronix cloud based Percepxion software platform for device life cycle management, enterprise application integration and data analytics. DMS is accessible by Percepxion or the local web manager, with graphical network topology, floor map creator, device map view, traffic monitoring and network diagnostics for troubleshooting. This BR SKU includes 19” rack mount brackets, (1) PS-ACDC-1200, (1) Saf-D adapter cables and Brazil power cord.
Ideal For
- IP surveillance networks using IEEE 802.3bt PoE++ ports
- Wireless Access Point deployments
- Managed access networks using Percepxion device life cycle management and data analytics
- Troubleshooting with DMS topology view, floor view, map view and traffic monitoring
Specifications
| Depth | 11.8” [300 mm] |
| Width | 17.4” [442 mm] |
| Height | 1.73” [44 mm] |
| Series | SM24TBT2DPB |
| Weight | 11.3 lbs [5.12 kg] |
| Humidity | 10% to 90% (non-condensing) |
| Protocol | CSMA/CD |
| Combo Ports | (2) 100/1000 SFP/RJ-45 combo ports |
| RJ-45 Ports | (24) 10/100/1000 RJ-45 ports |
| Console Port | (1) RJ console port |
| PoE++ Per Port | Max 90 Watts output per port |
| PoE++ Standard | IEEE 802.3bt; IEEE 802.3at; IEEE 802.3af |
| Certifications | FCC Class A, CE, UL62368-1 |
| Limited Warranty | 5 Year Limited Warranty |
| AC Low-line Input | 100 - 120VAC |
| Mac Address Table | 8K MAC address table |
| AC High Line Input | 200 - 277VAC |
| Included Accessory | 19” rack mount brackets; (1) Saf-D adapter cables |
| Switching Capacity | 52 Gbps |
| Hvdc Low-line Input | 192 - 254VDC |
| Included Power Cord | Brazil power cord |
| Hvdc High-line Input | 306-334VDC |
| Included Power Supply | (1) PS-ACDC-1200 |
| Operating Temperature | 0°C to +40°C |
| PoE++ Budget AC Low-line | 900W (single PS), 1,800W (dual PS) |
| PoE++ Budget AC High-line | 1,080W (single PS), 2,160W (dual PS) |
| PoE++ Budget Hvdc Low-line | 900W (single PS), 1,800W (dual PS) |
| PoE++ Budget Hvdc High-line | 1,080W (single PS), 2,160W (dual PS) |
| Power Consumption Without PoE++ | 79 Watts with dual AC power modules; 52 Watts with single AC power module |
Documentation
Frequently Asked Questions
What network ports does the SM24TBT2DPB-BR provide?▾
It provides (24) 10/100/1000Mbps copper ports with IEEE 802.3bt PoE++ capability and (2) additional 100/1000Mbps dual speed SFP/RJ-45 combo ports.
What is included with the SM24TBT2DPB-BR SKU?▾
The part row lists 19” rack mount brackets, (1) PS-ACDC-1200, (1) Saf-D adapter cables and Brazil power cord.
How much PoE power does it support?▾
The switch supplies up to 90 Watts per port. Power-over-Ethernet specifications list 900W with a single PS at AC low-line and 1,080W with a single PS at AC high-line.
How can the switch be managed?▾
Management features include Web Management, SNMP V1/V2c/V3, Telnet and CLI. DMS is accessible by Percepxion or the local web manager.
